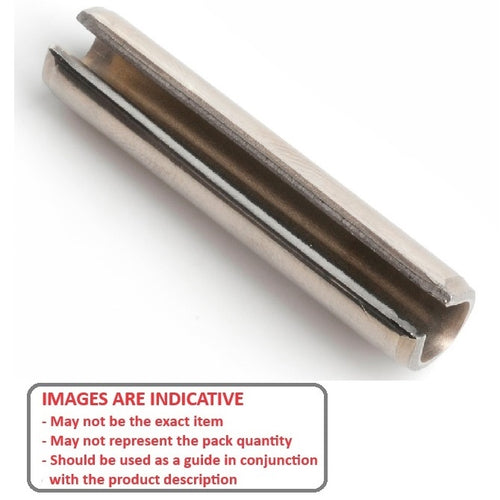

RP024-0127-420 - Datasheet
MBA
Category Information
Pins - Roll - Stainless Steel - 420 Grade420 Grade Stainless Steel Roll Pins. 420 grade stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 2.38 mm
- Length (L) 12.70 mm
- Free Diameter 2.62 mm
- Thickness (S) 0.56 mm
- Chamfer Length (cL) 0.20-0.97 mm
- Chamfer Diameter (cD) 2.3 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- 92383A204
- Reid Tool® P-130
- NoCor® SPS420-094-0500-420SS
- Huyett® SPSP-093-0500
- NoCor® SPSP-093-0500
- NoCor® SPSP-093-0500/B
- NoCor® SPSP-094-0500-420SS
- SPSP0940500420SS
- SPSP0930500/B
- SPS4200940500420SS
- P130
- A9Y350316
- A9Y35-0316
