Miniature Bearings Australia
RP010-0080-C - Datasheet
ENQUIRE
Category Information

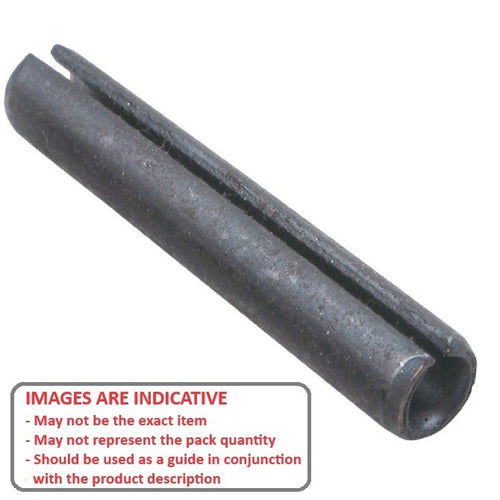

Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Diameter (D) : 1.00 mm
- Length (L) 8.00 mm
- Free Diameter 1.10 mm
- Thickness (S) 0.20 mm
- Chamfer Length (cL) 0.15 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Steel - Hardened Black Oxide Finish
Product Compliance and Data
Additional Resources
Cross References
- 91611A069
- NoCor® SPM-010-008
- NoCor® SPMP-010-008
- MD1481MQB010X008
- SPM010008
- SPMP010008
