CBSU407-2019 - Datasheet
MBA
Category Information

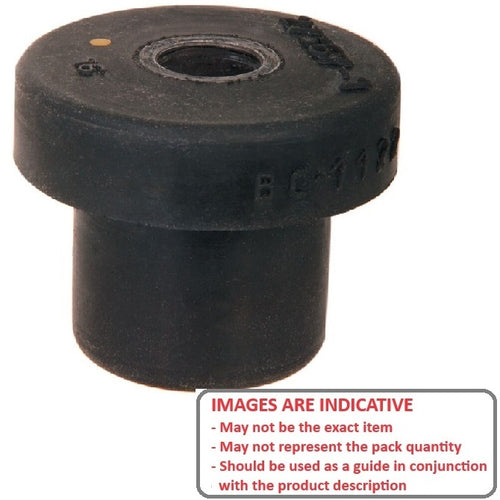

Mounts - Bonded - Tee Bush Centre BoltTee Bush Centre Bolt Bonded Mounts. Vibration isolation for mobile and static applications involving plate clamping
- An expanded range may be available on special order. Please enquire.
- Reduces structure borne noise and absorbs shock forces
- Low profile height
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Max Static Load : 407 kg

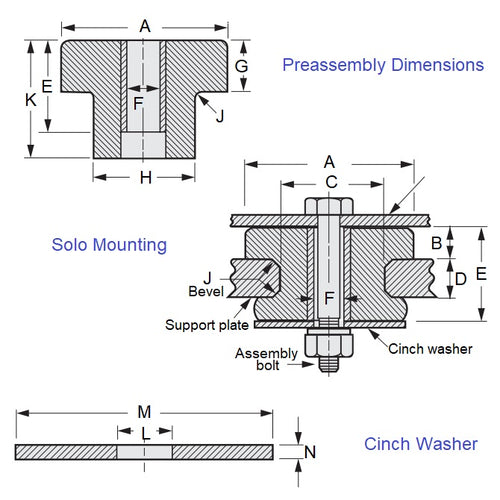

- Bolt Hole Diameter (C) 19.6 mm
- Flange Diameter (A) 95.3 mm
- Flange Width (F) 23.9 mm
- Shoulder Diameter (D) 52.3 mm
- Overall Length (B) 67.6 mm
- Material Rubber
Product Compliance and Data
Additional Resources
Cross References
- A10Z42-7000
- A10Z427000
