RPO-189-192-C - Datasheet
MBA
Category Information

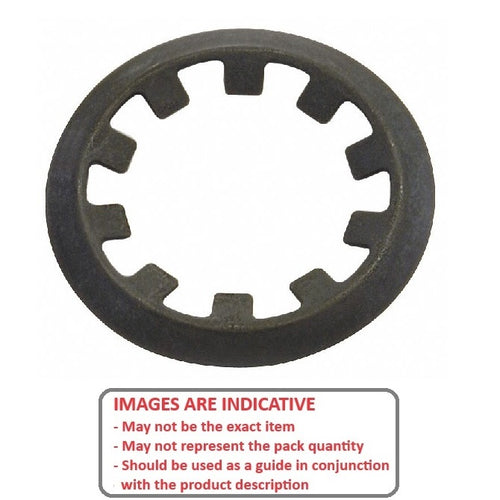

Retaining Rings - Push On - Carbon SteelCarbon Steel Push On Retaining Rings. M1465 / DTX / Seeger ZA and KS.
- An expanded range may be available on special order. Please enquire.
- Thrust load shown is calculated for ideal conditions with mild steel shaft.
- If no thrust load is shown, testing is suggested.

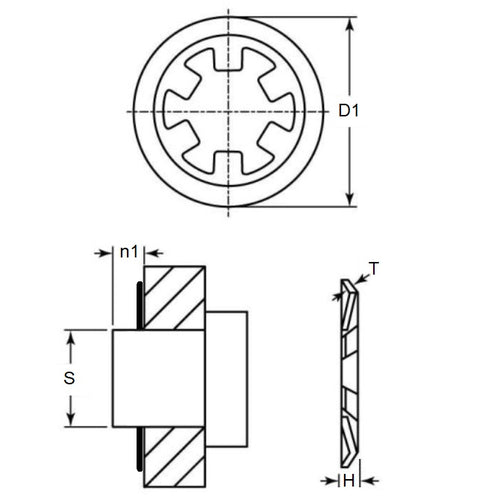

Product Data
- Min shaft size (s1) : 18.92 mm
- Max Shaft Size (s2) 19.18 mm
- Outside diameter (D1) 27.33 mm
- Min shaft extension (n1) 2.74 mm
- Height (H) Max. 1.37 mm
- Material Thickness (t) 0.38 mm
- Approx. Thrust Load 62 kg
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Waldes® 5115-075
- Huyett® TX-075
- NoCor® TX-075
- Rotor Clip® TX-075
- TX075
- N14650075APP
- N1465-0075
- N1465-0075APP
- N1465075
- N1465-075
- 5115075
