6903-2RS-T9H-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

High Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
  • Bearings in this group have various types of high speed cages.
  • Speed ratings range from 20 percent to 80 percent increase on standard cage types.
  • See individual datasheets, available on request.
  • Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
  • This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid

Product Data

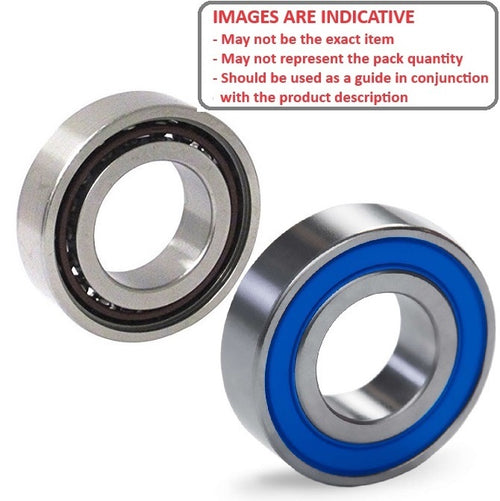

Double black rubber sealed economy bearing with a high speed polyamide retainer

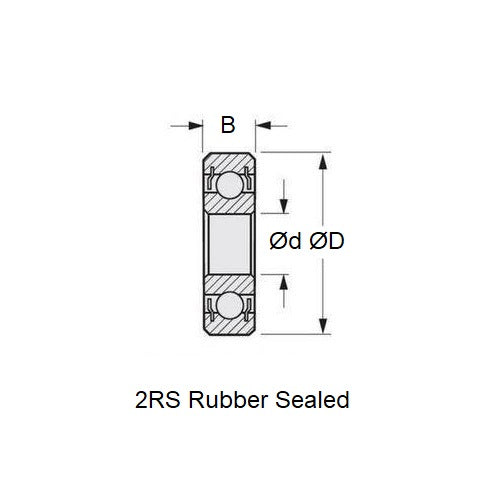

  • ID (d) : 17.000 mm
  • O.D. (D) 30.000 mm
  • Width (B) 7.000 mm
  • Precision Grade Economy
  • Closure Type 2RU
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part 6903
  • Limiting Speed 23772.8
  • Cage Type Polyamide
  • Static Load Rating KGf 248.9
  • Dynamic Load Rating KGf 444.6
  • Radii 0.30 mm
  • Inner Shoulder (UI) 21.00mm
  • Outer Shoulder (UO) 27.80 mm
  • Number of Balls 11
  • Clearance ECO (3 to 33)
  • Precision Grade ECO
  • Closure Type 2RS
  • Max Temperature 80 Deg. C
Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

  • Pushbike Bearings
  • RC Nitro Engine Parts
  • Fairwheel® Bicycle - Size List - High Speed Bearing 17-30-7mm
  • Chapman® - DC - 28 - Replacement Bearing
  • Enya® - X 2Cand3 - 19 - Replacement Bearing
  • Fitzpatrick - 61 With Side Exhaust and ABC Engine - Replacement Bearing
  • Irvine® - 15 All Models - Replacement Bearing
  • Irvine® - 46 All Models - Replacement Bearing
  • K.B - 8702 - 21 - Replacement Bearing
  • K.B - Outboard Late Model Marine - 40 - Replacement Bearing
  • K.B - Outboard Marine - 3.5 - Replacement Bearing
  • K.B - Outboard Marine Late Model - 90 - Replacement Bearing
  • K.B - Pro - 67 - Replacement Bearing
  • K.B - SS Marine - 7.5 .45CC - Replacement Bearing
  • OS Engines® - FSR ABC - 61 - Replacement Bearing
  • OS Engines® - FSR Gold Head - 45 - Replacement Bearing
  • OS Engines® - FSR RC Special - 90 - Replacement Bearing
  • OS Engines® - FSR Ring ED - 108 - Replacement Bearing
  • OS Engines® - RF ABC RC - 40 - Replacement Bearing
  • OS Engines® - RF-H Pump - 21 - Replacement Bearing
  • OS Engines® - RF-H RC With 7H - 21 - Replacement Bearing
  • OS Engines® - RF-P - 61 - Replacement Bearing
  • OS Engines® - RF-P Ring Hanno Special - 61 - Replacement Bearing
  • OS Engines® - SF ABC RC W-Muffler - 61 - Replacement Bearing
  • OS Engines® - SF-HP RC - 46 - Replacement Bearing
  • OS Engines® - SF-P RC/Pump - 46 - Replacement Bearing
  • OS Engines® - VF-H ABC - 25 - Replacement Bearing
  • OS Engines® - VF-H RC With 7H - 25 - Replacement Bearing
  • Saito® - 4C New - 45 - Replacement Bearing
  • Saito® - FA 80 - Replacement Bearing
  • YS - 2-C - 24.7 - Replacement Bearing
  • YS - 4-C - 140 - Replacement Bearing
  • YS - 91 All Models - Replacement Bearing

Cross References

  • Fairwheel Bicycle 6903
  • 6903T9HRSECO
  • 6903T9H2RSECO
  • 6903 Basic Size Ref
