S6202-2RS-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

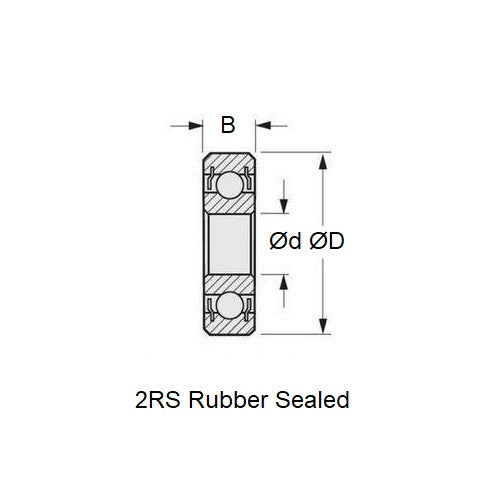

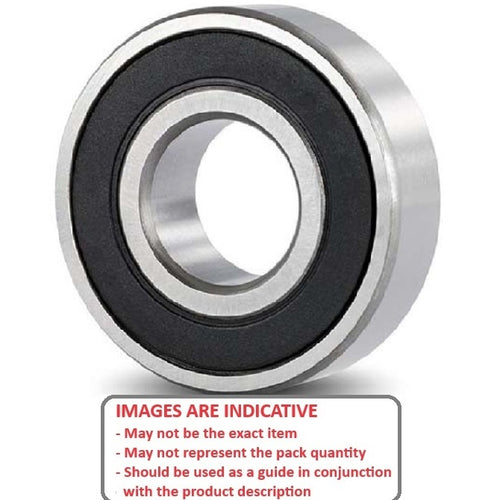

Double black rubber sealed economy stainless steel bearing
- ID (d) : 15.000 mm
- O.D. (D) 35.000 mm
- Width (B) 11.000 mm
- Precision Grade Economy
- Closure Type 2RS
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6202
- Limiting Speed 12920
- Cage Type Standard
- Static Load Rating KGf 363.8
- Dynamic Load Rating KGf 740
- Radii 0.60 mm
- Inner Shoulder (UI) 21.70mm
- Outer Shoulder (UO) 31.40 mm
- Number of Balls 8
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type 2RS
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- A.M Sachs® - 3.2 All Models - Replacement Rear Bearing - Alternative
- Aerrow-Quadra® - 50 All Models - Replacement Bearing
- Aerrow-Quadra® - 52 All Models - Replacement Bearing
- CMB - RS - 21 - Replacement Bearing
- Zenoah® - 80 - Replacement Bearing
- Zenoah® - G62 Air - 26 - Replacement Bearing
- Zenoah® - GT - 260 26CC - Replacement Bearing
Cross References
- SS62022RSECO 6202
- Stainless 62022RSECO
- Stainless 6202-2RS-ECO
- Stainless 6202RSECO
- Stainless 6202-RS-ECO
- Beco® SS62022RS
- Beco® SS6202RS
- 6202 Basic Size Ref
