6002-2RU-T9H-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

High Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
  • Bearings in this group have various types of high speed cages.
  • Speed ratings range from 20 percent to 80 percent increase on standard cage types.
  • See individual datasheets, available on request.
  • Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
  • This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid

Product Data

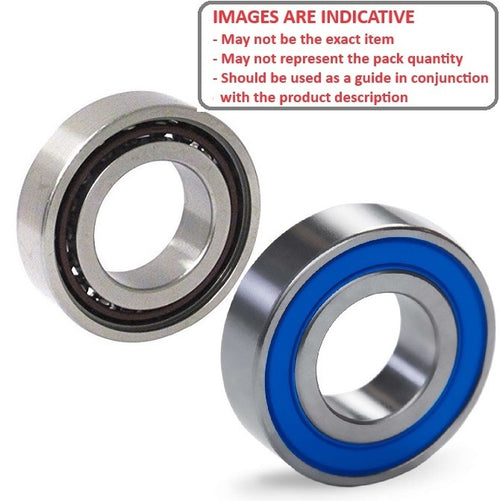

Double lightly sealed economy bearing with a high speed polyamide retainer

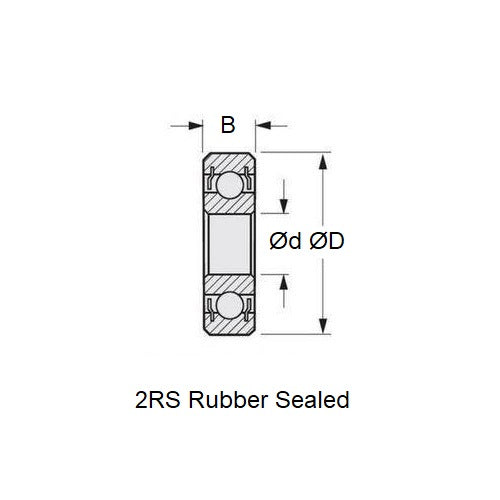

  • ID (d) : 15.000 mm
  • O.D. (D) 32.000 mm
  • Width (B) 9.000 mm
  • Precision Grade Economy
  • Closure Type 2RU
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part 6002
  • Limiting Speed 33212
  • Cage Type Polyamide
  • Static Load Rating KGf 275.5
  • Dynamic Load Rating KGf 541.5
  • Radii 0.30 mm
  • Inner Shoulder (UI) 20.20mm
  • Outer Shoulder (UO) 28.70 mm
  • Number of Balls 9
  • Clearance ECO (3 to 33)
  • Precision Grade ECO
  • Closure Type 2RU
  • Max Temperature 80 Deg. C
Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Nitro Engine Parts
  • CMB - 21 - Replacement Rear Bearing
  • CMB - 65 All Models - Replacement Rear Bearing
  • CMB - 67 All Models - Replacement Rear Bearing
  • CMB - CAM - 65 - Replacement Rear Bearing
  • CMB - CAM Marine - 45 - Replacement Rear Bearing
  • CMB - H Racing - Green Head - 67 - Replacement Rear Bearing
  • Enya® - 2C 733 - 46 - Replacement Rear Bearing
  • Enya® - 4C - 80 - Replacement Rear Bearing
  • Enya® - 4C - Old - 40 - Replacement Rear Bearing
  • Enya® - III - 35 - Replacement Rear Bearing
  • HB - 50 All Models - Replacement Rear Bearing
  • Mac® - 45 All Models - Replacement Rear Bearing
  • Magnum Power® - 120 4 Stroke - 21 - Replacement Rear Bearing
  • MVVS - 21 All Models - Replacement Rear Bearing
  • OS Engines® - FS FI Surpass II - 70 - Replacement Rear Bearing
  • OS Engines® - FS II Surpass With Pump 91 - Replacement Rear Bearing
  • OS Engines® - FS RC Surpass 4C - 40 - Replacement Rear Bearing
  • OS Engines® - FS Supercharge - 120 - Replacement Rear Bearing
  • OS Engines® - FS Supercharge - 61 - Replacement Rear Bearing
  • OS Engines® - FS Surpass II 4C - 12 - Replacement Rear Bearing
  • OS Engines® - FS Surpass RC 4C 91 - 40 - Replacement Rear Bearing
  • OS Engines® - FS-120 II Surpass - 91 - Replacement Rear Bearing
  • OS Engines® - FS-120 Non Surpass - 91 - Replacement Rear Bearing
  • OS Engines® - FS-120 Surpass III With Pump - Replacement Rear Bearing
  • OS Engines® - FS-120E Surpass - Replacement Rear Bearing
  • OS Engines® - FSR-M ABC RC - 61 - Replacement Rear Bearing
  • OS Engines® - H Old - 46 - Replacement Rear Bearing
  • Rossi® - New Marine - 21 - Replacement Rear Bearing
  • Thunder Tiger® - SF - 120 - Replacement Rear Bearing

Cross References

  • BOCA® MR6002-2RUTH9-C3
  • MR60022RUTH9C3
  • 6002T9H2RUECO
  • 6002 Basic Size Ref
