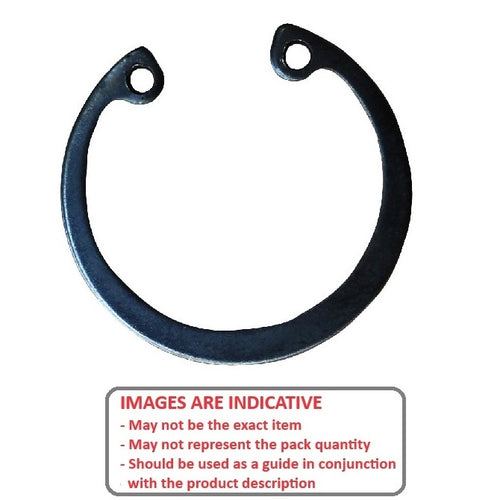

CCI-01500-C - Datasheet
MBA
Category Information
Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
15.00
mm
(Equiv. 0.591 in.) - Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.06
(Equiv. 0.039 in.) - Groove Dia. (Dg)
15.70
mm
+ 0.11 / - 0.00
(Equiv. 0.618 in.) - Approx. Loose Circlip OD (Dr) 16.20 mm + 0.36 / - 0.10
- Groove Width (W) 1.10 mm + 0.08 / - 0.00
- Clearance in Bore (C) 7.20 mm
- Clearance in Groove (C1) 8.30 mm
- Min. Lug Diameter (h) 1.70 mm
- Min. Extension (n) 1.10
- Standard DIN472
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 472-015
- Bossard® BN-822-015
- Waldes® D1300-015
- Huyett® DHO-015
- NoCor® DHO-015
- Rotor Clip® DHO-015
- Seeger® J-015
- Seeger® J15
- Seeger® J15-BLS
- Seeger® J15X1
- Seeger® NZT.J15
- D13000150
- DHO015
- D1300-0150
- D13000150APP
- D1300-0150APP
- 472015
- MD0472MQB015
- J15BLS
- J015
- BN822015
- CCI01500C
