COL-01588-036-37-GF-AB - Datasheet
MBA
Category Information

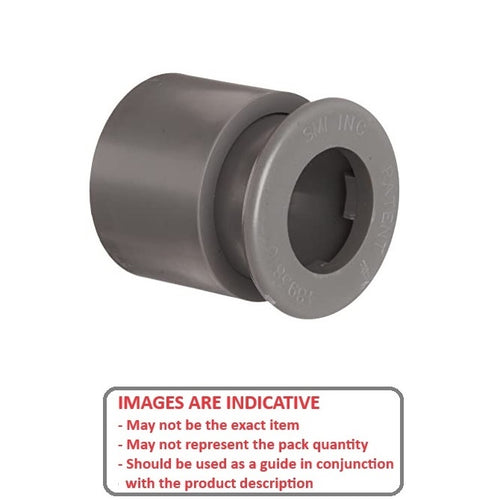

Collars - Shaft - Gripfast - ABS PlasticABS Plastic Gripfast Shaft Collars. Self Locking - Quick Release.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- 265 kg Load Capacity (600 lbs).
- ABS Plastic Inner Body and Outer Sleeve.
- Steel Retention Ring, Balls and Springs.

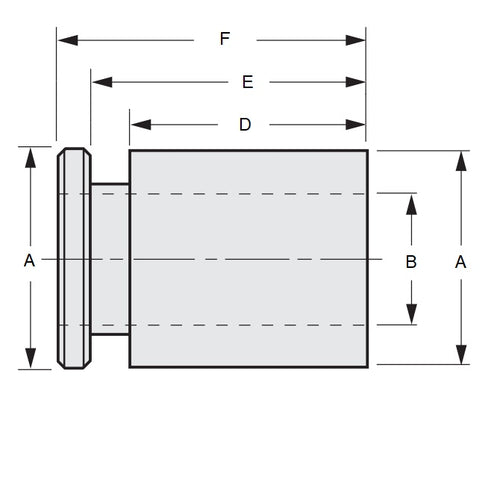

Product Data
- Suitable Shaft Size (d) : 15.875 mm
- Outside Diameter (D) 35.60 mm
- Overall Width (S) 37.1 mm
- Material ABS Plastic
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® SMI-620
- SMI620
- A7Z340625SC
- A7Z34-0625SC
