Miniature Bearings Australia
S6002-ZZ-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

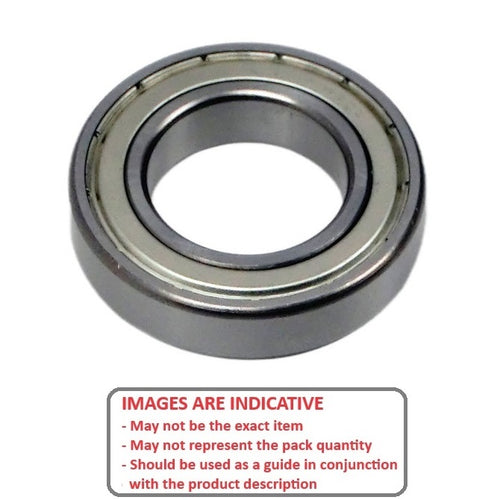

Double shielded economy stainless steel bearing

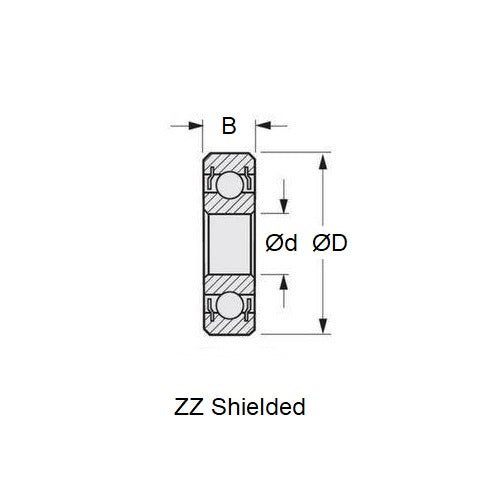

- ID (d) : 15.000 mm
- O.D. (D) 32.000 mm
- Width (B) 9.000 mm
- Precision Grade Economy
- Closure Type ZZ
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6002
- Limiting Speed 21850
- Cage Type Standard
- Static Load Rating KGf 275.5
- Dynamic Load Rating KGf 541.5
- Radii 0.30 mm
- Inner Shoulder (UI) 20.20mm
- Outer Shoulder (UO) 28.70 mm
- Number of Balls 9
- Clearance CN (10 to 26)
- Precision Grade ECO
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- CMB - 20 All Models - Replacement Rear Bearing
- CMB - 21 - Replacement Rear Bearing
- CMB - 60 All Models - Replacement Rear Bearing
- CMB - CAM - 90 - Replacement Rear Bearing
- CMB - CAM Marine - 45 - Replacement Rear Bearing
- CMB - H Racing - Green Head - 90 - Replacement Rear Bearing
- Enya® - 2C 733 - 45 - Replacement Rear Bearing
- Enya® - 4C - 80 - Replacement Rear Bearing
- Enya® - 4C - Old - 40 - Replacement Rear Bearing
- Enya® - III - 120 - Replacement Rear Bearing
- Enya® - III - 35 - Replacement Rear Bearing
- Fox® - 0.15 - Replacement Rear Bearing
- HB - 25 All Models - Replacement Rear Bearing
- HB - 50 All Models - Replacement Rear Bearing
- K.B - 45 All Models - Replacement Rear Bearing
- K.B - 48 All Models - Replacement Rear Bearing
- K.B - IB - 7.5 - Replacement Rear Bearing
- K.B - Inboard - 3.5 - Replacement Rear Bearing
- K.B - Inboard Marine Late Model - 67 - Replacement Rear Bearing
- K.B - Inboard Marine Late Model - 82 - Replacement Rear Bearing
- Kraft® - 61 - 45 - Replacement Rear Bearing
- Mac® - 45 All Models - Replacement Rear Bearing
- Mac® - 67 All Models - Replacement Rear Bearing
- Magnum Power® - 120 4 Stroke - 21 - Replacement Rear Bearing
- MVVS - Twin - 40 - Replacement Rear Bearing
- OS Engines® - FS FI Surpass II - 70 - Replacement Rear Bearing
- OS Engines® - FS II Surpass With Pump 91 - Replacement Rear Bearing
- OS Engines® - FS RC Surpass 4C - 40 - Replacement Rear Bearing
- OS Engines® - FS Supercharge - 120 - Replacement Rear Bearing
- OS Engines® - FS Supercharge - 61 - Replacement Rear Bearing
- OS Engines® - FS Surpass II 4C - 120 - Replacement Rear Bearing
- OS Engines® - FS Surpass RC 4C 91 - 40 - Replacement Rear Bearing
- OS Engines® - FS-120 II Surpass - Replacement Rear Bearing
- OS Engines® - FS-120 II Surpass - 91 - Replacement Rear Bearing
- OS Engines® - FS-120 Non Surpass - 91 - Replacement Rear Bearing
- OS Engines® - FS-120 Surpass III With Pump - Replacement Rear Bearing
- OS Engines® - FS-120E Surpass - Replacement Rear Bearing
- OS Engines® - FSR-M ABC RC - 61 - Replacement Rear Bearing
- OS Engines® - H Old - 46 - Replacement Rear Bearing
- Picco® - Hydro - 45 - Replacement Rear Bearing
- Rossi® - New Marine - 21 - Replacement Rear Bearing
- Rossi® - New Marine - 80 - Replacement Rear Bearing
- Thunder Tiger® - SF - 54 - Replacement Rear Bearing
- Thunder Tiger® - SF - 61 - Replacement Rear Bearing
Cross References
- SS6002ZZECO 6002
- Stainless 6002ZZECO
- Stainless 6002-ZZ-ECO
- Misumi® C-SE6002ZZ
- CSE6002ZZ
- 6002ZECO
- 6002-Z-ECO
- 6002 Basic Size Ref
