BFM-15M-B - Datasheet
MBA
Category Information

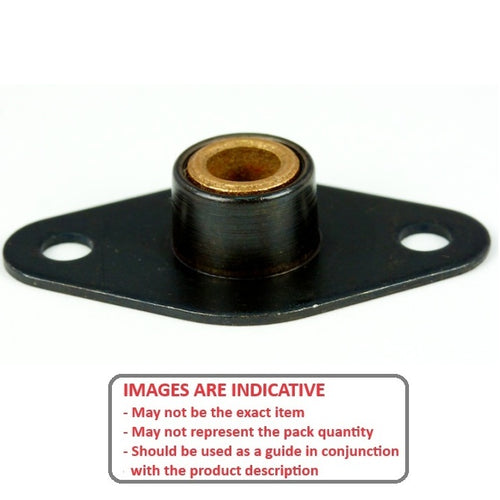

Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Sintered BronzeSintered Bronze Aligning Flanged 2 Bolt Housing and Bearing Assembly. Low profile self aligning flange mounted sintered bronze bearings
- Bearing housing assemblies combine matching parts already assembled. Bearings in this range refer to either ball bearings or plain bearings. Refer to the listings for each type.
- Flanged mounting allows for a shaft to run through a bulkhead to which the housing is mounted, or to have a shaft mounted perpendicular to a metal frame.
- +/- 5% Static Alignment
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

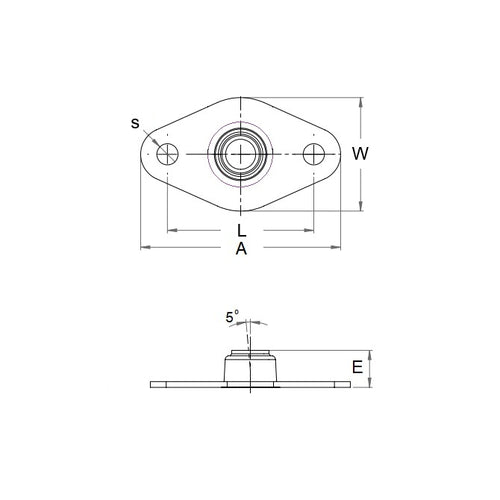

- Nominal Shaft Size : 15.000 mm
- Width (W) 60.00 mm
- Overall Length (A) 28.00 mm
- Overall Height (E) 39.70 mm
- Min to Max Shaft Dia. 15.030 to 15.050 mm
- Max. Radial Dynamic Load 3750 N
- Bolt Hole Centres (L) 45.20 mm
- Max Speed 6460
- Material Sintered Bronze SAE 840
Product Compliance and Data
Additional Resources
Cross References
- 5912K82
