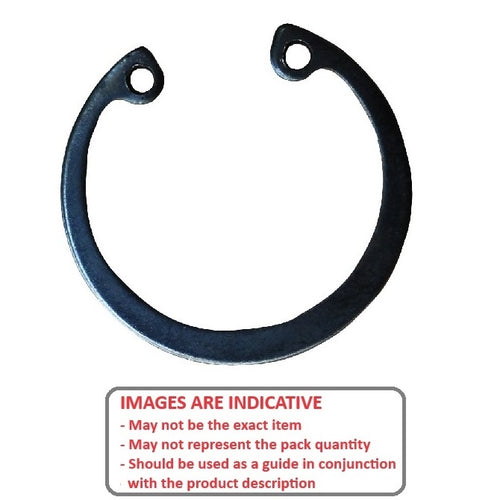

CCI-13000-C - Datasheet
MBA
Category Information
Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data

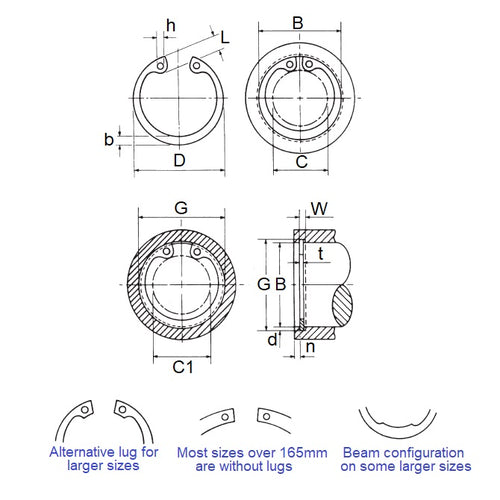

- Housing Bore (B)
:
130.00
mm
(Equiv. 5.118 in.) - Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.) - Groove Dia. (Dg)
134.00
mm
+ 0.63 / - 0.00
(Equiv. 5.276 in.) - Approx. Loose Circlip OD (Dr) 137.00 mm + 1.50 / - 0.63
- Groove Width (W) 4.15 mm + 0.13 / - 0.00
- Clearance in Bore (C) 106.90 mm
- Clearance in Groove (C1) 112.00 mm
- Min. Lug Diameter (h) 4.00 mm
- Min. Extension (n) 6.00
- Standard DIN472
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 472-130
- 98455A170
- Bossard® BN-822-130
- Waldes® D1300-130
- Huyett® DHO-130
- NoCor® DHO-130
- Rotor Clip® DHO-130
- Seeger® J130
- Seeger® J-130
- Seeger® J130-WAS
- Seeger® J130X4
- Seeger® NZT.J130
- DHO130
- D1300130
- 472130
- J130WAS
- BN822130
