S6001-CSN-2RS-T9H - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Ceramic HybridCeramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Bearings with steel races and ceramic balls.
- For standard bearings, the balls are usually one of the first components to show wear.
- Ceramic balls are harder than steel and do not wear as easily.
- Items with high speed cages have the suffixes T9H, TNH, TW or KC
Product Data

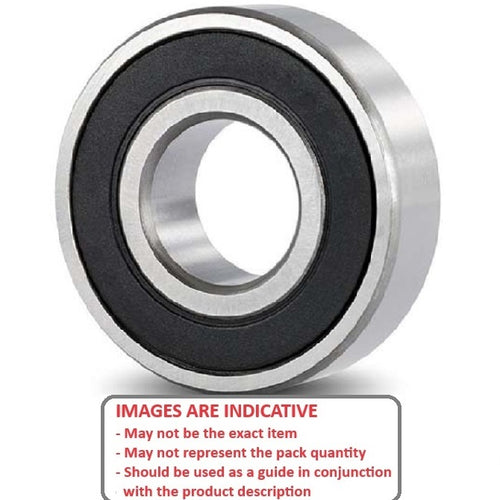

Deleted Item. Double rubber sealed stainless ceramic-hybrid bearing with high speed polyamide cage
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

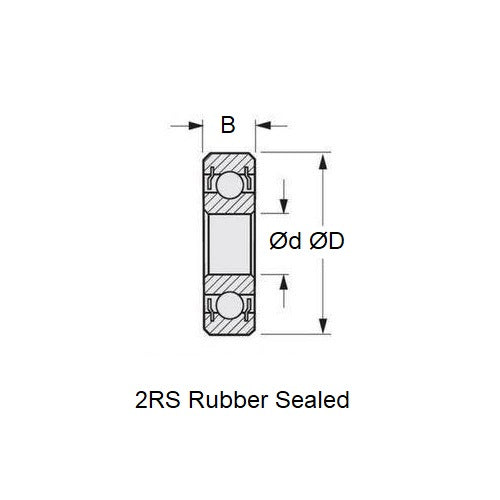

- ID (d)
:
12.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.472 in.) - O.D. (D)
28.000
mm
+ 0.000 / - 0.010
(Equiv. 1.102 in.) - Width (B)
8.000
mm
+ 0.000 / - 0.125
(Equiv. 0.315 in.) - Precision Grade Abec 1
- Closure Type 2RS
- Bearing Type Radial
- Material Stainless Steel AISI 440C - High Speed Polyamide Cage - Ceramic Si3N4 Balls
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6001
- Limiting Speed 29376
- Cage Type Polyamide
- Static Load Rating KGf 195.2
- Dynamic Load Rating KGf 416.8
- Radii 0.30 mm
- Inner Shoulder (UI) 17.20mm
- Outer Shoulder (UO) 25.50 mm
- Number of Balls 8
- Clearance CN (3 to 18)
- Precision Grade Abec 1
- Closure Type 2RS
- Max Temperature 80 Deg. C
