Miniature Bearings Australia
6801-2RS - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

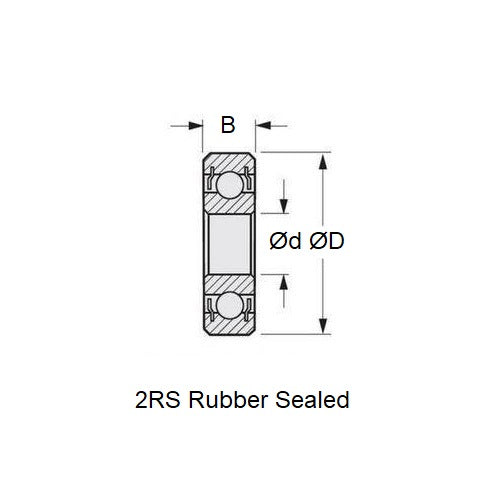

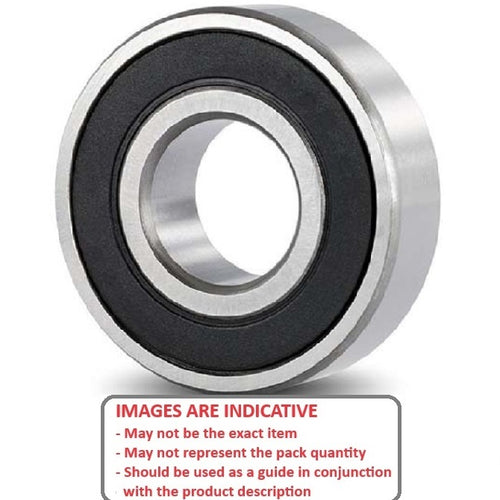

Double rubber sealed standard bearing
- ID (d)
:
12.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.472 in.) - O.D. (D)
21.000
mm
+ 0.000 / - 0.010
(Equiv. 0.827 in.) - Width (B)
5.000
mm
+ 0.000 / - 0.125
(Equiv. 0.197 in.) - Precision Grade Abec 1
- Closure Type 2RS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6801
- Limiting Speed 22440
- Cage Type Standard
- Static Load Rating KGf 106
- Dynamic Load Rating KGf 195
- Radii 0.30 mm
- Inner Shoulder (UI) 13.80mm
- Outer Shoulder (UO) 19.15 mm
- Number of Balls 12
- Clearance CN (3 to 18)
- Precision Grade Abec 1
- Closure Type 2RS
- Max Temperature 80 Deg. C
