Miniature Bearings Australia

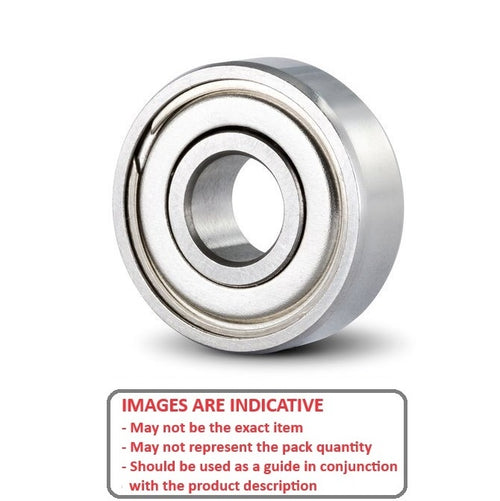

6701-ZZS - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

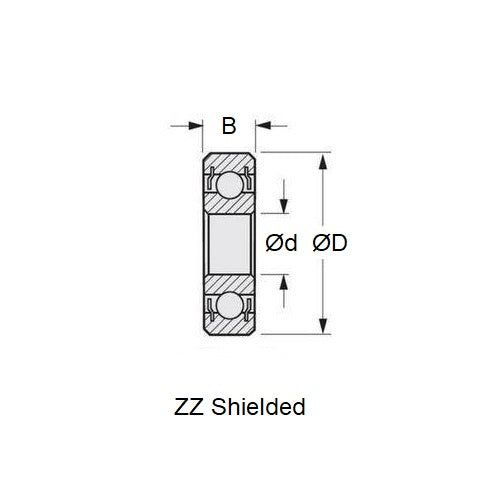

Double shielded standard bearing
- ID (d)
:
12.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.472 in.) - O.D. (D)
18.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.709 in.) - Width (B)
4.000
mm
+ 0.000 / - 0.125
(Equiv. 0.157 in.) - Precision Grade Abec 1
- Closure Type ZZS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6701
- Limiting Speed 13000
- Cage Type Crown
- Static Load Rating KGf 54
- Dynamic Load Rating KGf 94
- Radii 0.20 mm
- Inner Shoulder (UI) 13.86mm
- Outer Shoulder (UO) 16.70 mm
- Number of Balls 13
- Clearance CN (3 to 18)
- Precision Grade Abec 1
- Closure Type ZZS
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- RC Helicopter Parts
- CEN - CT4-S Nitro On Road - Replacement Bearing
- Corally® - C4 Touring Car - Diff Bearing
- Corally® - Mini Assassin - Replacement Bearing
- Corally® - RDX - Replacement Bearing
- Duratrax® - Evader Buggy - Replacement Bearing
- Duratrax® - Evader BX - Replacement Bearing
- Duratrax® - Evader BX Nitro - Replacement Bearing
- Duratrax® - Evader BX Pro RTR Electric - Replacement Bearing
- Duratrax® - Evader ST - Replacement Bearing
- Duratrax® - Evader ST Nitro - Replacement Bearing
- Duratrax® - Evader ST Pro RTR - Replacement Bearing
- Hobao® - Hyper GPX4 - Replacement Bearing
- HPI - R40 - Replacement Bearing
- HPI - R40 With Clutch Bell And Steering - Replacement Bearing
- Kyosho® - Evolva 2005 - Replacement Bearing
- Kyosho® - F1 FW-04 With GS-15R - Replacement Bearing
- Kyosho® - FW-05 Foam Tyre Special Chassis - Replacement Bearing
- Kyosho® - FW-05R - Replacement Bearing
- Kyosho® - Mclaren BMW - Replacement Bearing
- Kyosho® - Super Ten FW-04 - Replacement Bearing
- Kyosho® - V-One RR - Replacement Bearing
- Kyosho® - V-One RR Evolution - Replacement Bearing
- Kyosho® - V-One RRR - Replacement Bearing
- Mugen® - MRX-4 - Replacement Bearing
- Mugen® - MRX-4R - Replacement Bearing
- Mugen® - MST-1 1/10 Gas Truck With Clutch - Replacement Bearing
- Mugen® - MTX-3 - Replacement Bearing
- Mugen® - MTX-3 Prospect - Replacement Bearing
- Mugen® - Sting 1/8 Gas - Replacement Bearing
- RD Logistics - Mongoose - Replacement Bearing
- Serpent® - 705 - Replacement Bearing
- Serpent® - 710 1-10TH Gas Sedan - Replacement Bearing
- Serpent® - 835 1-10 2WD - Replacement Bearing
- Serpent® - 835 1-10 4WD - Replacement Bearing
- Serpent® - 950R - Replacement Bearing
- Serpent® - 950R With Front Wheel Upgrade - Replacement Bearing
- Serpent® - 950R With STE Ten and Front Wheel UP - Replacement Bearing
- Serpent® - 950R With Steering and Tensioner - Replacement Bearing
- Serpent® - Impact M2 Spec 2000 4WD - Replacement Bearing
- Serpent® - Impulse 1/10 Scale Single SPE - Replacement Bearing
- Serpent® - Impulse Pro 1/10 4WD - Replacement Bearing
- Serpent® - XL900 MkII - Hub Bearing
- Team Losi® - LST Super Truck LOSB0010 - Replacement Bearing
- Team Losi® - Monster Truck LST2 LOSB0015 - Replacement Bearing
- Team Magic® - G4S - Replacement Bearing
- Tenth Technology® - Predator - Replacement Bearing
- Traxxas® - Revo - Replacement Bearing
- Trinity® - G4 Nitro Touring Car-E Class - Replacement Bearing
- Trinity® - Mongoose - Replacement Bearing
- Trinity® - Reflex NT 1/10 Scale - Replacement Bearing
- Trinity® - Reflex NT Nitro With Clutch Bell - Replacement Bearing
- Trinity® - Reflex NT Without Clutch Bell - Replacement Bearing
- Century® - Falcon 46 - Replacement Bearing
- Century® - Falcon 46 Upgrade Kit - Replacement Bearing
- Century® - Hawk II - Replacement Bearing
- Century® - Hawk II Upgrade Kit - Replacement Bearing
- Century® - Hawk Sport All - Replacement Bearing
- Century® - Phoenix 52-4-C - Replacement Bearing
- Century® - Phoenix 52-4-C Upgrade Kit - Replacement Bearing
- Century® - Raven 30-50 - Replacement Bearing
- Kyosho® - CONCEPT 30 DX Upgrade - Replacement Bearing
- Kyosho® - CONCEPT 30 SX - Replacement Bearing
- Kyosho® - CONCEPT 30-SX - Replacement Bearing
- Kyosho® - CONCEPT 60 - Replacement Bearing
- Kyosho® - CONCEPT 60 R - Replacement Bearing
- Kyosho® - CONCEPT 60 SR - Replacement Bearing
- Synergy® - N9 - Replacement Bearing
- Thunder Tiger® - Raptor 60 V2 - Replacement Bearing
- Thunder Tiger® - Raptor 90 SE - Replacement Bearing
Cross References
- Kyosho® 5044
- Duratrax DTXC1597
- 6701-ZZ
- 6701ZZ
- 6701 Basic Size Ref
