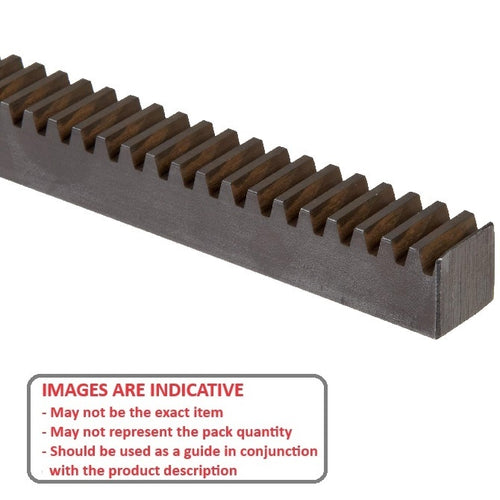

GR-V8-32-1219-19-C - Datasheet
MBA
Category Information
Gears - Rack - Imperial - 8DP Steel8DP Steel Imperial Rack Gears. 14.5 Degree Pressure Angle. Unhardened Steel. DP stands for Diametrical Pitch imperial sizes.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
- 8 DP. Approx 9.98mm between teeth.
Product Data
- Length (L) : 1219.2 mm
- Face Width (fw) 31.75 mm
- Height (h) 19.050 mm
- Pitch Type 8DP - 14.5 PA
- Pitch Height (ph) 15.875 mm
- Pressure Angle 14.5 °
- Mounting Holes None
- Shape Rectangular
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® GE-0800
- Boston Gear® L518-4
- GE0800
- L5184
