GR-V12-19-1219-13-C - Datasheet
MBA
Category Information

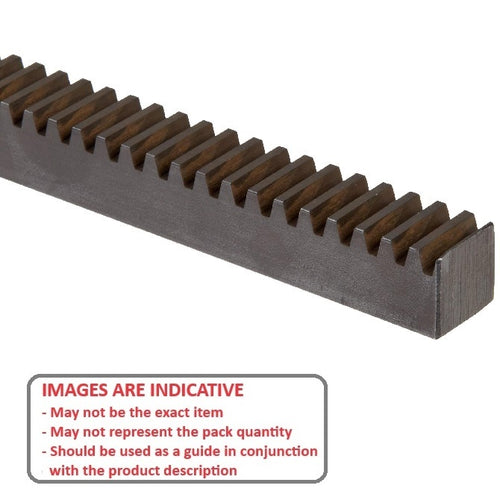

Gears - Rack - Imperial - 12DP Steel12DP Steel Imperial Rack Gears. 14.5 Degree Pressure Angle. Unhardened Steel. DP stands for Diametrical Pitch imperial sizes.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- 12 DP. Approx 6.65mm between teeth.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.

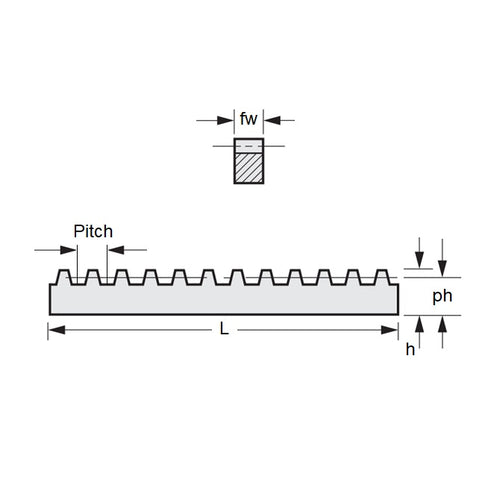

Product Data
- Length (L) : 1219.2 mm
- Face Width (fw) 19.05 mm
- Height (h) 12.700 mm
- Pitch Type 12DP - 14.5 PA
- Pitch Height (ph) 10.592 mm
- Pressure Angle 14.5 °
- Mounting Holes None
- Shape Rectangular
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® GE-1200
- Boston Gear® L514-4
- GE1200
- L5144
