CCI-12000-C - Datasheet
MBA
Category Information

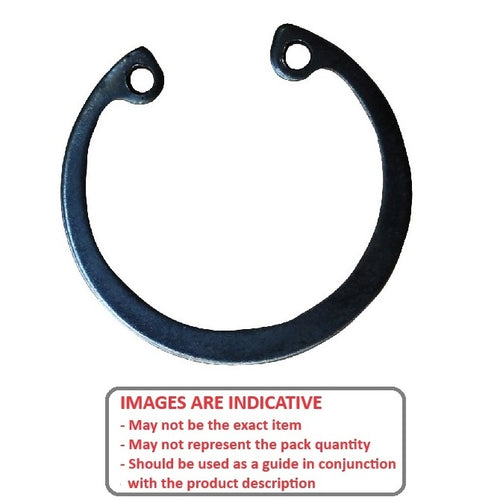

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.

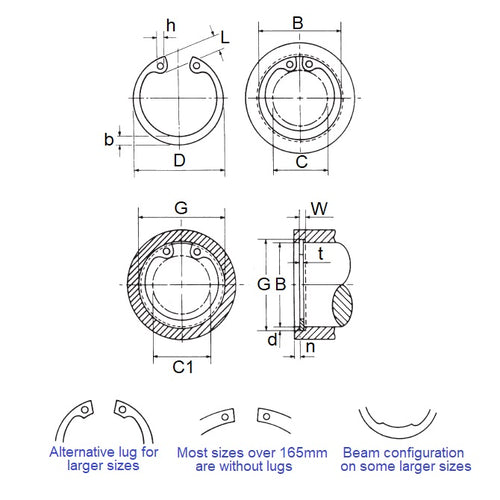

Product Data
- Housing Bore (B) : 120.00 mm
- Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.) - Groove Dia. (Dg)
124.00
mm
+ 0.63 / - 0.00
(Equiv. 4.882 in.) - Approx. Loose Circlip OD (Dr) 127.00 mm + 1.50 / - 0.63
- Groove Width (W) 4.15 mm + 0.13 / - 0.00
- Clearance in Bore (C) 96.90 mm
- Clearance in Groove (C1) 102.00 mm
- Min. Lug Diameter (h) 3.50 mm
- Min. Extension (n) 6.00
- Standard DIN472
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 472-120
- 98455A167
- Bossard® BN-822-120
- Waldes® D1300-120
- Huyett® DHO-120
- NoCor® DHO-120
- Rotor Clip® DHO-120
- Seeger® J120
- Seeger® J-120
- Seeger® J120-WAS
- Seeger® J120X4
- Seeger® NZT.J120
- BN822120
- J120WAS
- D1300120
- DHO120
- 472120
