RP127-0889-420 - Datasheet

MBA

Category Information

Pins - Roll - Stainless Steel - 420 Grade

420 Grade Stainless Steel Roll Pins. 420 grade stainless DIN1481/ISO8752.

  • An expanded range may be available on special order. Please enquire.
  • Also known as sel-lok and bissell pins

Product Data

  • Nominal Diameter (D) : 12.70 mm
  • Length (L) 88.90 mm
  • Free Diameter 13.97 mm
  • Thickness (S) 2.39 mm
  • Chamfer Length (cL) 0.64-2.79 mm
  • Chamfer Diameter (cD) 12.3 mm
  • Standard DIN1481 / ISO8752
  • Type Standard
  • Material Stainless Steel AISI 420C Rc 46-52
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Brighton Best® 803254
  • 92383A680
  • Reid Tool® P-460
  • Huyett® SPSP-500-3500
  • P460
View full details

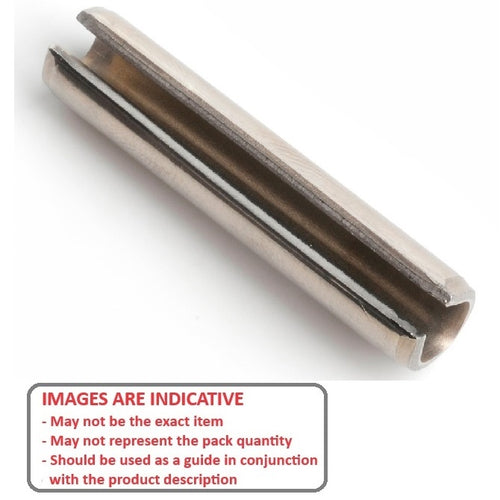

RP127-0889-420DiagramRP127-0889-420Image
