TLB-1610-0127 - Datasheet
MBA
Category Information

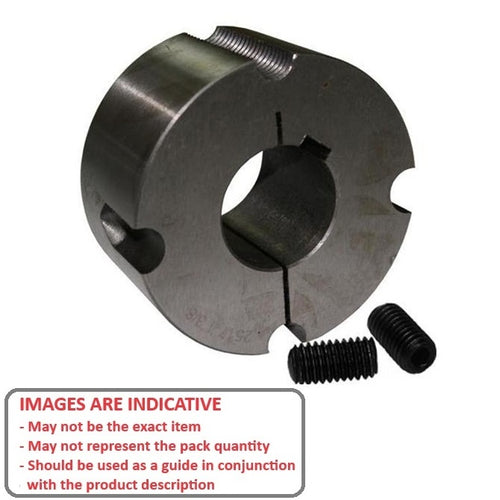

Bushings - TaperlockTaperlock Bushings. Taperlock Bushings for Pulleys and Sprockets.
- An expanded range may be available on special order. Please enquire.
- It is fastened tightly to the shaft via its tapered surface with the matching component.
- It provides flexibility between the main component to be suitable with many shaft sizes.
Product Data

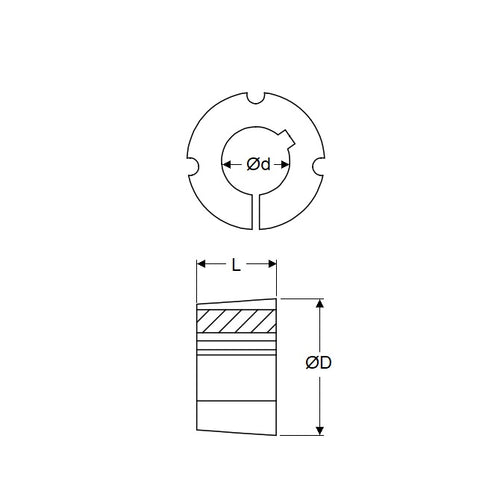

- Bore (d) : 12.700 mm
- Large End Dia. (D) 57.0 mm
- Length (L) 25.4 mm
- Taperlock Series 1610
- No of Screws 2
- Screw Size 3/8x5/8 mm
- Wrench Torque 20 Nm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 57095K169
- TLB161012
- TLB-1610-12
- TLB-1610-1-2
