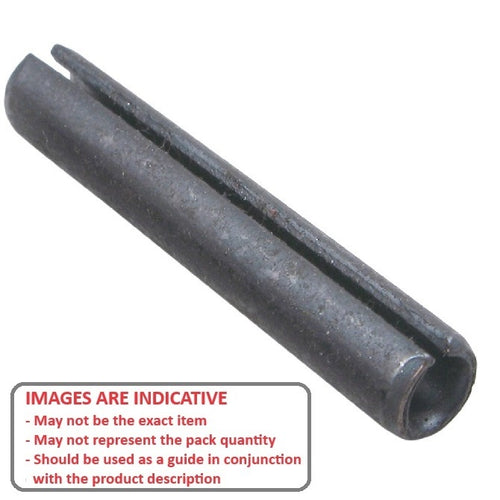

RP127-0381-C - Datasheet
MBA
Category Information
Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 12.70 mm
- Length (L) 38.10 mm
- Free Diameter 13.97 mm
- Thickness (S) 2.39 mm
- Chamfer Length (cL) 0.64-2.79 mm
- Chamfer Diameter (cD) 12.3 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 801245
- 98296A662
- Huyett® SPP-500-1500
- NoCor® SPP-500-1500
- SPP5001500
