GHK1270-1270-064 - Datasheet

ExaktKey

Category Information

Keys - Gib Head - Steel

Steel Gib Head Keys. Tapered 3.000 mm per 300 mm (1:100)

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nominal Key Height (H1) : 12.700 mm
  • Width (W) 12.700 mm
  • Length (L) 63.5 mm
  • Approx (B) 10.16
  • Material Cold Finished Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 98471A238
  • Huyett® GIB-0500-2500
  • NoCor® GIB-0500-2500
  • GIB05002500
View full details

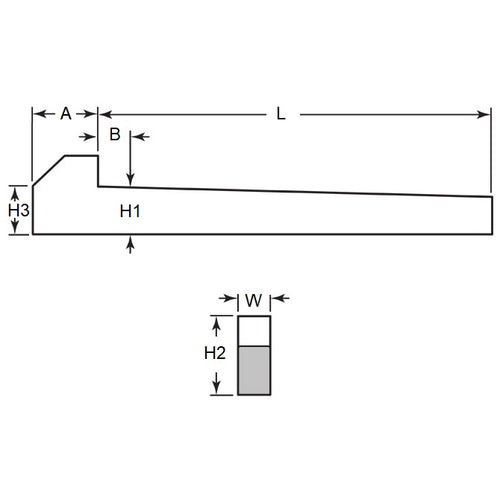

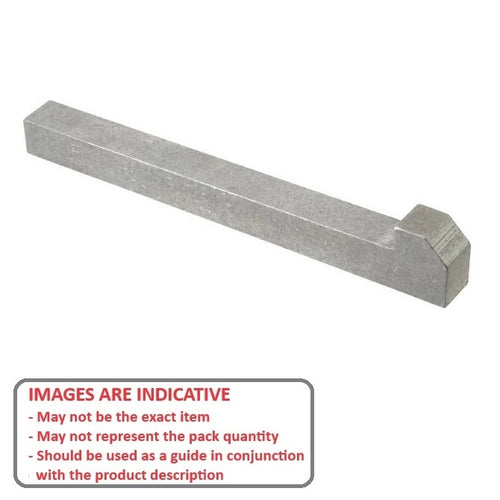

GHK1270-1270-064DiagramGHK1270-1270-064Image
