GHK1270-1270-152 - Datasheet
ExaktKey
Category Information

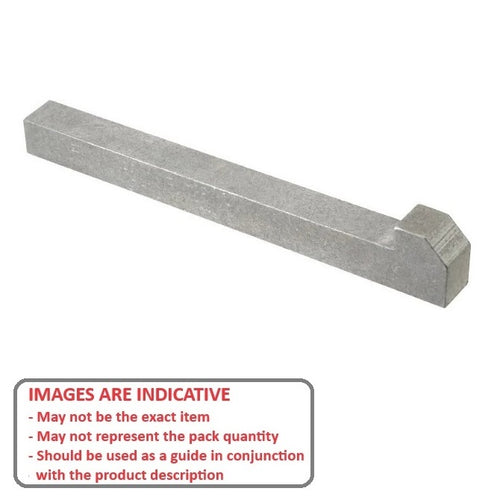

Keys - Gib Head - SteelSteel Gib Head Keys. Tapered 3.000 mm per 300 mm (1:100)
- An expanded range may be available on special order. Please enquire.
Product Data

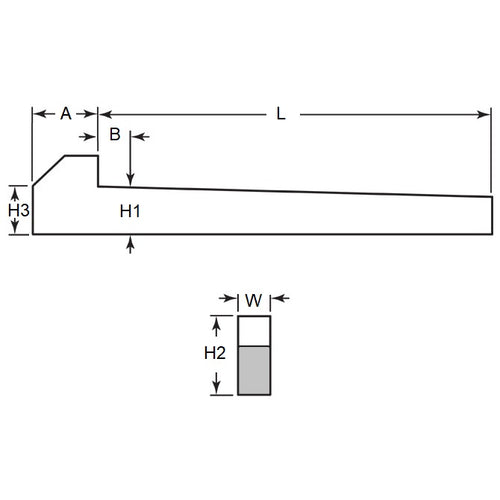

- Nominal Key Height (H1) : 12.700 mm
- Width (W) 12.700 mm
- Length (L) 152.4 mm
- Head Height (h2) Approx. 19.1 mm
- Approx (B) 10.16
- Approx (H3) 13.49
- Taper 1:100
- Standard BS46
- Head Length (Approx) (A) 14.29 mm
- Material Cold Finished Steel
Product Compliance and Data
Additional Resources
Cross References
- 98471A245
- Huyett® GIB-0500-6000
- NoCor® GIB-0500-6000
- MAK-A-KEY® JMEDG6X12
- GIB05006000
