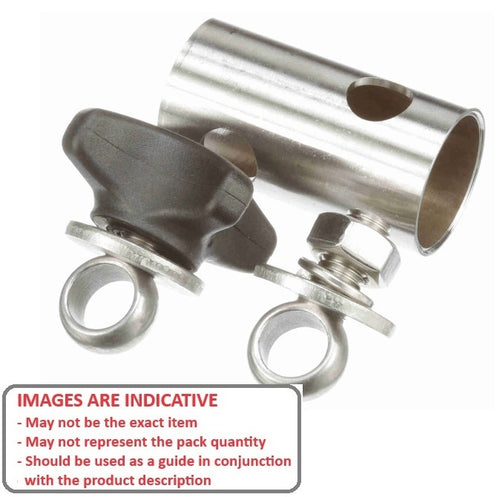

Cross Blocks - Single Knob and NutSingle Knob and Nut Cross Blocks. Used for connecting two round rods at 90o.
- Adjustments can be made by loosening the hand knob. Plastic knobs function independently for precise adjustment.
- Knobs have brass insert for easy turning and to prevent galling. Stainlesss steel eye bolt firmly clamps around adjusting rod for superior holding strength.
- Eyelet does not mar rod when tightened, resulting in smooth rod surface that easily slides through the cross block.
- No set screws required. Plastic or Stainless bodies accept 12.70 or 15.88mm rods.
Product Data

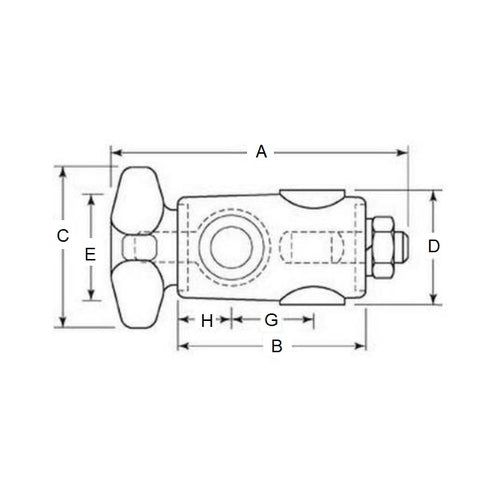

- Rod Size : 12.70 x 12.70 mm
- Overall Length (A) 96.520 mm
- Body Length (B) 58.674 mm
- Body Diameter (E) 31.750 mm
- H 16.764 mm
- G 25.400 mm
- Knob Size (C) 50.800 mm
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
