6001-Z-C3-T9H-AF12-E - Datasheet

WIB

Category Information

Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

High Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
  • Bearings in this group have various types of high speed cages.
  • Speed ratings range from 20 percent to 80 percent increase on standard cage types.
  • See individual datasheets, available on request.
  • Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
  • This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid

Product Data

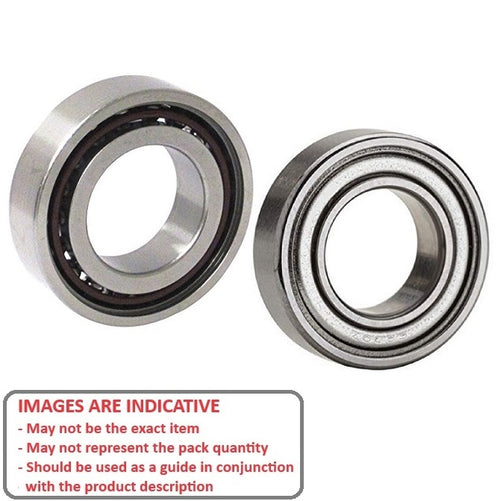

Deleted Item. Available while stocks last. Single shielded bearing with high speed polyamide retainer and light oil lubricant

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

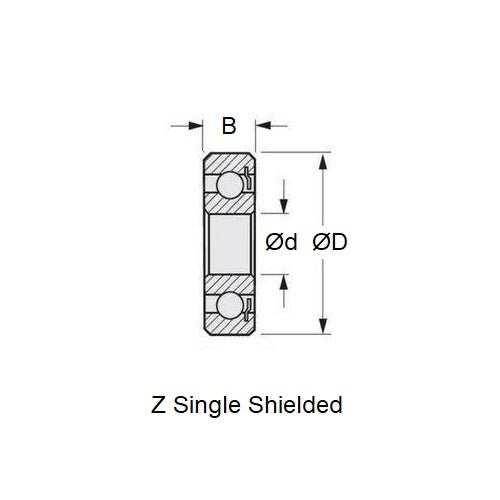

  • ID (d) : 12.000 mm + 0.000 / - 0.0075
    (Equiv. 0.472 in.)
  • O.D. (D) 28.000 mm + 0.000 / - 0.010
    (Equiv. 1.102 in.)
  • Width (B) 8.000 mm + 0.000 / - 0.125
    (Equiv. 0.315 in.)
  • Precision Grade Abec 1
  • Closure Type Z
  • Bearing Type Radial
  • Made In European WIB/GRW
  • Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
  • Lubrication Type Oil
  • Lubrication Name AF12 Aeroshell Fluid 12
  • Basic Part 6001
  • Limiting Speed 51200
  • Cage Type Polyamide
  • Static Load Rating KGf 244
  • Dynamic Load Rating KGf 521
  • Radii 0.30 mm
  • Inner Shoulder (UI) 17.20mm
  • Outer Shoulder (UO) 25.50 mm
  • Number of Balls 8
  • Clearance C3 (11 to 25)
  • Precision Grade Abec 1
  • Closure Type Z
  • Max Temperature 120 Deg. C
Country of Origin: DE

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Nitro Engine Parts
  • CMB - 90 Grand Prix - Replacement Front Bearing
  • CMB - 90 Grand Prix - Replacement Rear Bearing
  • CMB - CAM 45 - Replacement Rear Bearing
  • Enya® - 120GP - Replacement Front Bearing
  • Enya® - 53 - 4 Stroke - Replacement Rear Bearing
  • Enya® - R120 - 4 Stroke - Replacement Front Bearing
  • Enya® - R90 - 4 Stroke - Replacement Front Bearing
  • HP - 49 VT - Replacement Rear Bearing
  • Mac® - 45 - Replacement Rear Bearing
  • Moki® - 1.5 25CC - Replacement Front Bearing
  • Nelson - 7.5 - 45 - Replacement Rear Bearing
  • OPS - 90 - Replacement Front Bearing
  • OS Engines® - 140 RX - 2 Stroke - Replacement Front Bearing
  • OS Engines® - 160 RX - 2 Stroke - Replacement Front Bearing
  • OS Engines® - 3500 - Replacement Front Bearing
  • OS Engines® - F52H - 4 Stroke - Replacement Rear Bearing
  • OS Engines® - FS52S - 4 Stroke - Replacement Rear Bearing
  • OS Engines® - FS90 - 4 Stroke W-Muffler - Replacement Rear Bearing
  • OS Engines® - FT240 -FT300 TW RC - 4 Stroke - Replacement Front Bearing
  • Picco® - 45 EXR - 2 Stroke - Replacement Rear Bearing
  • Picco® - 67 - 2 Stroke - Replacement Rear Bearing
  • Picco® - 80 Marine - 2 Stroke - Replacement Rear Bearing
  • Picco® - 90 Marine - 2 Stroke - Replacement Front Bearing
  • Rossi® - 65 -80 Marine - 81 DF - Replacement Rear Bearing
  • Rossi® - 90 Old - Replacement Front Bearing
  • Saito® - 40 -45 -50 Quickie - Replacement Rear Bearing
  • Super Tigre® - G45 4 - Replacement Front Bearing
  • Super Tigre® - S65 - 2 Stroke - Replacement Rear Bearing
  • Super Tigre® - X40 - Replacement Rear Bearing
  • Webra® - 2.2 Bully 35CC - Replacement Front Bearing
  • Webra® - 2.2 Bully 35CC - Replacement Rear Bearing
  • Webra® - 40 - Replacement Rear Bearing
  • Webra® - 80 DF - Replacement Rear Bearing
  • Zenoah® - G23 - Front and Rear Bearing

Cross References

  • WIB 6001-Z-T9H-C3-WW-Safecoat66
  • GRW SS6001-Z-C3GPRTHBL001
  • SS6001ZC3GPRTHBL001
  • 6001T9HZC3AF12E
  • 6001ZT9HC3WWSafecoat66
  • 6001 Basic Size Ref
