TPM-1000-04000-EI - Datasheet
MBA
Category Information

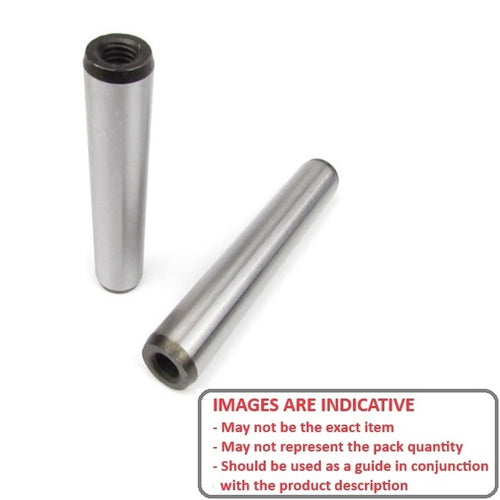

Pins - Taper Metric - Extractable - Internal ThreadInternal Thread Extractable Taper Metric Pins. Metric Sizes Tapered 1:50 and threaded internally for easy extraction.
- An expanded range may be available on special order. Please enquire.
- DIN 7978.
Product Data

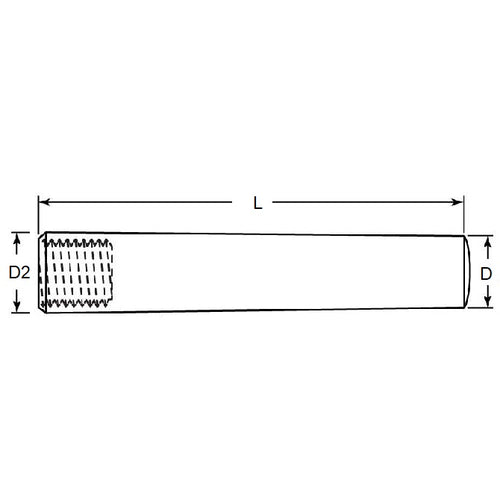

- Nom. Small End Diameter (D) : 10.00 mm
- Length (L) 40.00 mm
- Nom. Large End Diameter (D2) 10.80 mm
- Thread Size M6
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Huyett® TPTMI-100-040
- NoCor® TPTMI-100-040
- TPX1040
- TPM100004000EX
- TPTMI100040
- TPX10-40
