PR-0100-030-ZZ-ET-90 - Datasheet
MBA
Category Information

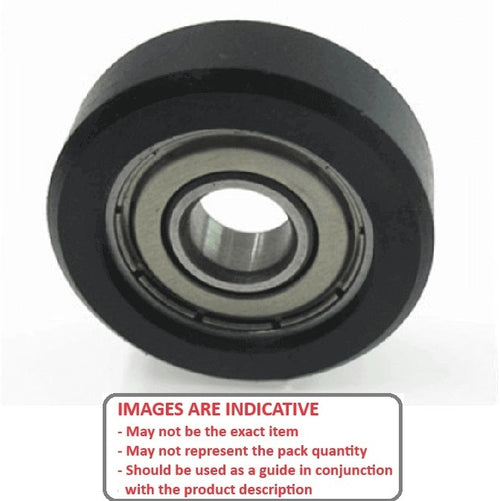

Rollers - Pressure Roller with Bearing - Urethane ODUrethane OD Pressure Roller with Bearing Rollers. Bearings with Urethane Tyre on OD for applications requiring frictional movement.
- For applications including paper and card dispensing and rolling (eg ATM Machines).
Product Data

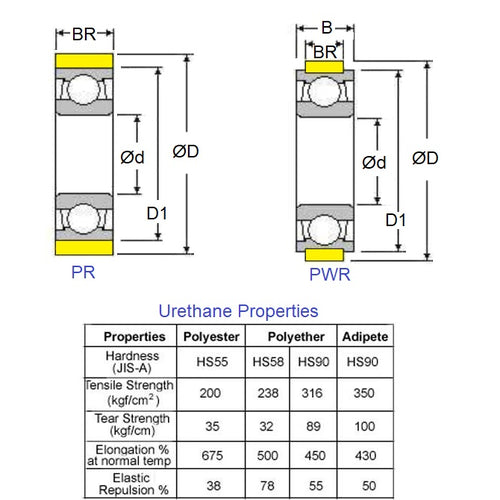

- OD (D) : 10.00 mm
- ID (d) 3.00 mm
- Width (B) 4.00 mm
- Roller Width (BR) 4.00 mm
- Bearing Outside Diameter (D1) 8.00 mm
- Roller Material 90 Duro (JIS-A) Polyester Based Urethane - Black
- Closures ZZ Double Shielded
- Bearing Type Pressure Roller
- Material Chrome Steel SAE 52100
Product Compliance and Data
Additional Resources
Cross References
- PR0100030ZZES55
