TPM-1000-03200-EI - Datasheet
ENQUIRE
Category Information

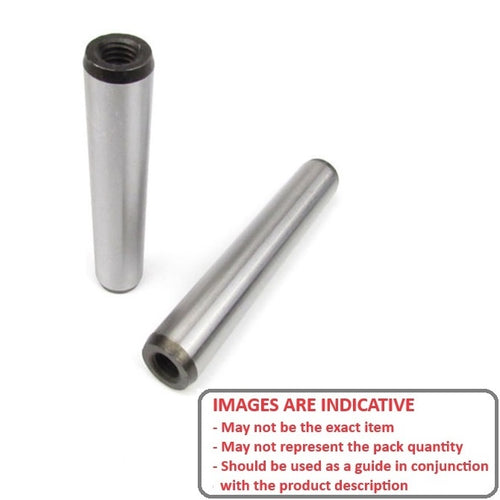

Pins - Taper Metric - Extractable - Internal ThreadInternal Thread Extractable Taper Metric Pins. Metric Sizes Tapered 1:50 and threaded internally for easy extraction.
- An expanded range may be available on special order. Please enquire.
- DIN 7978.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nom. Small End Diameter (D) : 10.00 mm
- Length (L) 32.00 mm
- Nom. Large End Diameter (D2) 10.64 mm
- Thread Size M6
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor® TPTMI-100-032
- TPTMI100032
- TPX1032
- TPX10-32
- TPM100003200EX
