Miniature Bearings Australia
6000-2RS - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

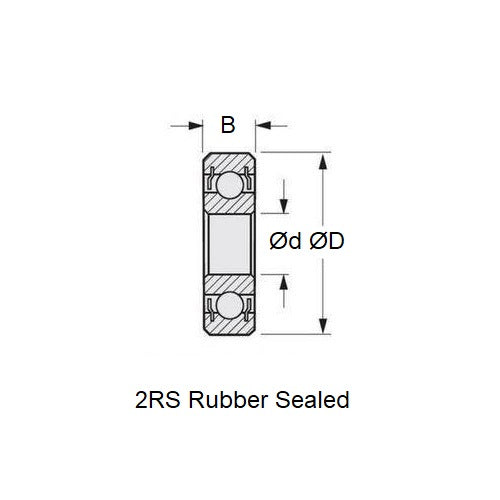

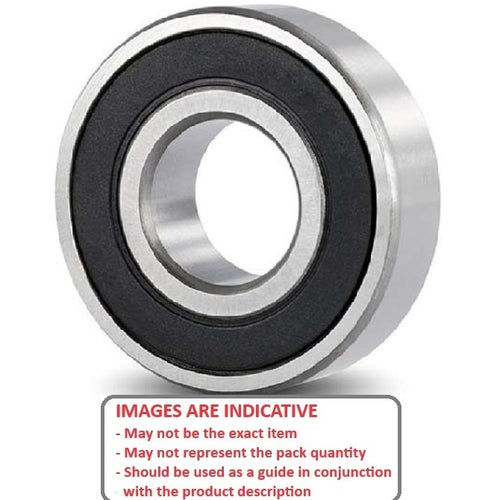

Double rubber sealed standard bearing
- ID (d)
:
10.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.394 in.) - O.D. (D)
26.000
mm
+ 0.000 / - 0.010
(Equiv. 1.024 in.) - Width (B)
8.000
mm
+ 0.000 / - 0.125
(Equiv. 0.315 in.) - Precision Grade Abec 1
- Closure Type 2RS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6000
- Limiting Speed 21080
- Cage Type Standard
- Static Load Rating KGf 200
- Dynamic Load Rating KGf 463
- Radii 0.30 mm
- Inner Shoulder (UI) 12.90mm
- Outer Shoulder (UO) 22.40 mm
- Number of Balls 7
- Clearance CN (2 to 13)
- Precision Grade Abec 1
- Closure Type 2RS
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Power Tool Parts
- RC Nitro Engine Parts
- Makita® - 1900B Planer - Replacement Bearing
- ASP® - 108 All Models - Replacement Bearing
- ASP® - 91 Old - Front Bearing 10-26-8mm
- CMB - 21 - Replacement Bearing
- CMB - 67 All Models - Replacement Bearing
- CMB - CAM - 65 - Replacement Bearing
- CMB - CAM Marine - 80 - Replacement Bearing
- CMB - H Racing - Green Head - 65 - Replacement Bearing
- Mac® - 12 All Models - Replacement Bearing
- Mac® - 45 All Models - Replacement Bearing
- Magnum Power® - 120 4 Stroke - 21 - Replacement Bearing
- Magnum Power® - XL - 108 - Replacement Bearing
- Magnum Power® - XL - 46 - Replacement Bearing
- Magnum Power® - XL 4C - 30 - Replacement Bearing
- MDS - FS Pro - 61 - Replacement Bearing
- Moki® - 1.8 All Models - Replacement Bearing
- Moki® - 51 All Models - Replacement Bearing
- MVVS - Glow Engine - 40 - Replacement Bearing
- OS Engines® - FR5 5Cylinder 4C - 60 - Replacement Bearing
- OS Engines® - FS RC Surpass 4C - 40 - Replacement Bearing
- OS Engines® - FS Supercharge - 120 - Replacement Bearing
- OS Engines® - FS Supercharge - 61 - Replacement Bearing
- OS Engines® - FS-120 II Surpass - 91 - Replacement Bearing
- OS Engines® - FS-120 Non Surpass - 91 - Replacement Bearing
- OS Engines® - FS-120 Surpass III With Pump - Replacement Bearing
- OS Engines® - FS-120E Surpass - Replacement Bearing
- OS Engines® - FSR - 50 - Replacement Bearing
- OS Engines® - FSR - 60 - Replacement Bearing
- OS Engines® - FSR RC LS - 61 - Replacement Bearing
- OS Engines® - FSR RC W-Muffler - 50 - Replacement Bearing
- OS Engines® - FSR Ring RN - 108 - Replacement Bearing
- OS Engines® - FSR-M ABC RC - 61 - Replacement Bearing
- OS Engines® - RX - 21 - Replacement Bearing
- OS Engines® - RX-2 Cycle - 15 - Replacement Bearing
- OS Engines® - RX-EFI - 21 - Replacement Bearing
- OS Engines® - RX-FI - 140 - Replacement Bearing
- RCV - 120SP - 15 - Replacement Bearing
- RCV - 58 CD - 15 - Replacement Bearing
- Saito® - 160 - 120 - Replacement Bearing
- Saito® - 35 All Models - Replacement Bearing
- Saito® - FA 125 - 90 - Replacement Bearing
- Saito® - FA 90 - Replacement Bearing
- Saito® - FA180 - 91 - Replacement Bearing
- Saito® - S Goldhead - 50 - Replacement Bearing
- Thunder Tiger® - Pro - 12 - Replacement Bearing
- Thunder Tiger® - RP - 61 - Replacement Bearing
- Thunder Tiger® - SF - 120 - Replacement Bearing
- Webra® - 40 All Models - Replacement Bearing
- Webra® - Speed - 61 - Replacement Bearing
Cross References
- 5972K81
- Sealed 6000 / 8
- Nachi® 6000-2NSEC3
- WIB 6000-2RSR
- NTN® 6000-2RU
- NTN® 6000LLB
- NTN® 6000LLU
- WIB 6000-RSR
- FAFNIR® 9100PP
- 6000DDU
- 60002RSR
- 60002NSEC3
- 60002RU
- 6000RSR
- 6000VV
- 6000 Basic Size Ref
