Miniature Bearings Australia

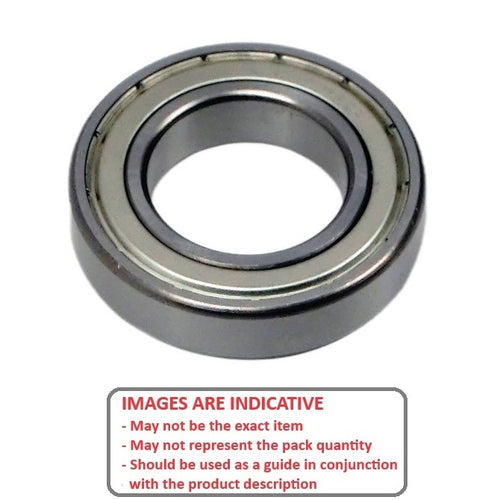

6800B-ZZ - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

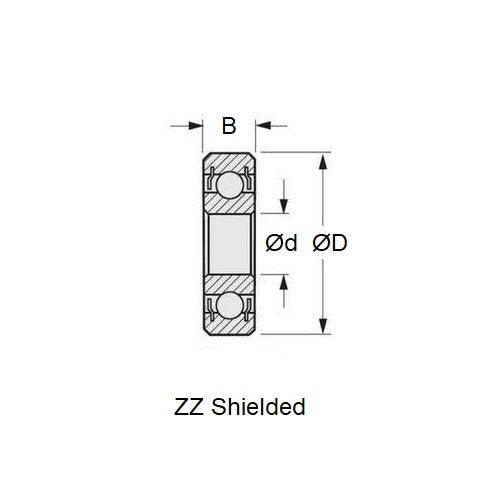

Double shielded standard bearing, non-ISO width
- ID (d)
:
10.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.394 in.) - O.D. (D)
19.000
mm
+ 0.000 / - 0.010
(Equiv. 0.748 in.) - Width (B)
7.000
mm
+ 0.000 / - 0.125
(Equiv. 0.276 in.) - Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6800B
- Limiting Speed 37000
- Cage Type Standard
- Static Load Rating KGf 85
- Dynamic Load Rating KGf 175
- Radii 0.30 mm
- Inner Shoulder (UI) 11.80mm
- Outer Shoulder (UO) 17.15 mm
- Number of Balls 10
- Clearance CN (2 to 13)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- RC Helicopter Parts
- Academy® & MRC® - Desert Thunder - Replacement Bearing
- Academy® & MRC® - Nitro Thunder King - Replacement Bearing
- Academy® & MRC® - Thunder King - Replacement Bearing
- Academy® & MRC® - Thunder King Desert Thunder Baja King - Replacement Bearing
- Academy® & MRC® - Thunder King Large Rear Wheels - Replacement Bearing
- Academy® & MRC® - ThunderKing Larger Rear Wheel - Replacement Bearing
- Delta® - P4 1/8 Gas - Replacement Bearing
- Duratrax® - Fire Hammer - Replacement Bearing
- FG Model Sport® - Big-Foot - Replacement Bearing
- FG Model Sport® - Evo Competition - Replacement Bearing
- FG Model Sport® - Leopard - Replacement Bearing
- FG Model Sport® - Monster Beetle - Replacement Bearing
- FG Model Sport® - MT5 - Replacement Bearing
- FG Model Sport® - Sportline - Replacement Bearing
- Kyosho® - Nitro Brute - Replacement Bearing
- Team Associated® - RC500 Gas - Replacement Bearing
- Team Associated® - RC500 Gas 4WD - Replacement Bearing
- Team Losi® - HARM SX3-2005 - Replacement Bearing
- VS Model - Leopard Race - Replacement Bearing
- Bergen Machine® - Intrepid 60 - Replacement Bearing
- Century® - Hawk Sport All - Replacement Bearing
- JR - 30 - Replacement Bearing
- JR - Ergo 30/46 Complete Kit - Replacement Bearing
- JR - Ergo 30/46 Upgrade Kit - Replacement Bearing
- JR - Ergo 60 - Replacement Bearing
- JR - Vibe 90 3D - Replacement Bearing
- JR - Vigor CS - Replacement Bearing
- Kalt® - Cyclone - Replacement Bearing
- Kalt® - Cyclone II - Replacement Bearing
Cross References
- JR 60016
- JR 60017
- WIB 63800-2Z
- WIB 63800-Z
- ADR 63800-ZZ
- CSR 63800-ZZ
- SKF 63800-ZZ
- Shielded Width B 6800/7
- GRW 6800-2Z
- Shielded 6800B / 7
- BOCA® MR1910-ZZ
- L1910-ZZ
- L1910ZZ
- MR1910ZZ
- 638002Z
- 63800ZZ
- 68002Z
- 6800B Basic Size Ref
