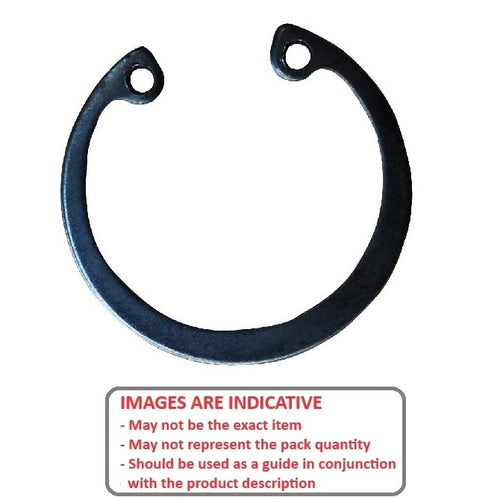

CCI-10000-C - Datasheet
MBA
Category Information
Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.

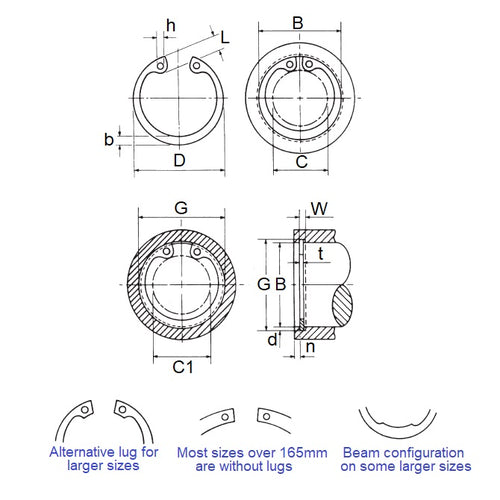

Product Data
- Housing Bore (B)
:
100.00
mm
(Equiv. 3.937 in.) - Clip Thickness (T)
3.00
mm
+ 0.00 / - 0.08
(Equiv. 0.118 in.) - Groove Dia. (Dg)
103.50
mm
+ 0.35 / - 0.00
(Equiv. 4.075 in.) - Approx. Loose Circlip OD (Dr) 105.50 mm + 1.30 / - 0.54
- Groove Width (W) 3.15 mm + 0.13 / - 0.00
- Clearance in Bore (C) 80.60 mm
- Clearance in Groove (C1) 85.10 mm
- Min. Lug Diameter (h) 3.50 mm
- Min. Extension (n) 5.30
- Standard DIN472
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 472-100
- 98455A161
- Bossard® BN-822-100
- Waldes® D1300-100
- Huyett® DHO-100
- NoCor® DHO-100
- Rotor Clip® DHO-100
- Seeger® J100
- Seeger® J-100
- Seeger® J100-S
- Seeger® J100X3
- Seeger® NZT.J100
- D1300100
- DHO100
- 472100
- J100S
- BN822100
