KM048F-025-5LSFT19-ST - Datasheet

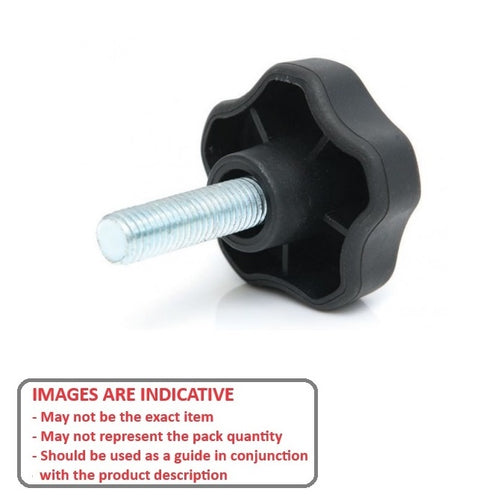

Name: 1058676 | KM048F-025-5LSFT19-ST (Each) --- Lobe Knobs - 10-32 UNF - 4.76mm - 25x19.1 mm Five Lobe - Plated Steel and Plastic Knob
Rating: 5.0 (1 reviews)

MBA

Category Information

Knobs - Lobe - Five Lobe - Male - Soft Touch

Soft Touch Male Five Lobe Lobe Knobs. Also see star knobs

An expanded range may be available on special order. Please enquire.

Product Data

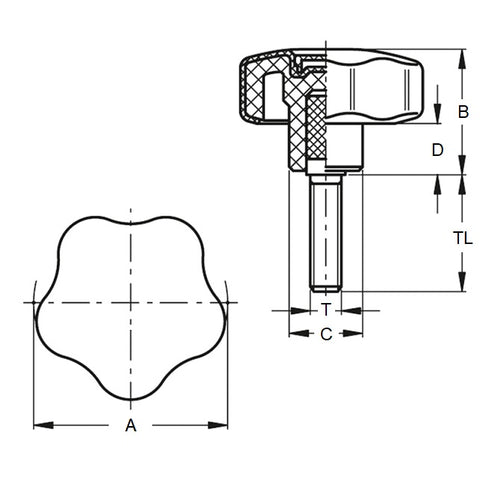

Thread Size : 10-32 UNF (4.76mm)
Head Diameter (A) 25.00 mm
Thread Length 19.1 mm
Colour Black
Hub Diameter (C) 12.95 mm
Knob Height (B) 19.05 mm
Material Plated Steel and Plastic

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Knobs PDF Quick Guide by Thread Size

Measuring Small Parts
Metalworking Resource Guide

Cross References

Reid Tool® KHY-205
KHY205
