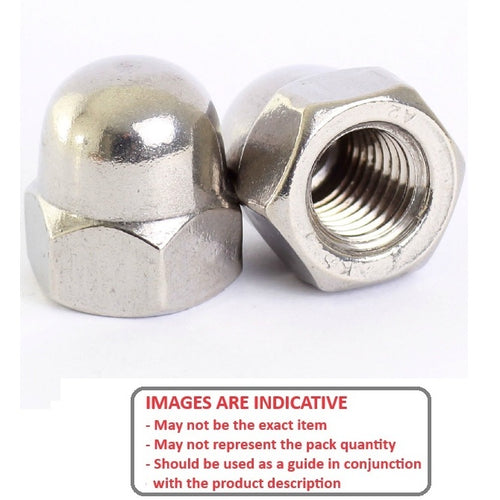

NT048F-DM-S4 - Datasheet

Brighton Best

Product Data

• Thread Size : 10-32 UNF (4.76mm)
• Material 304 Stainless

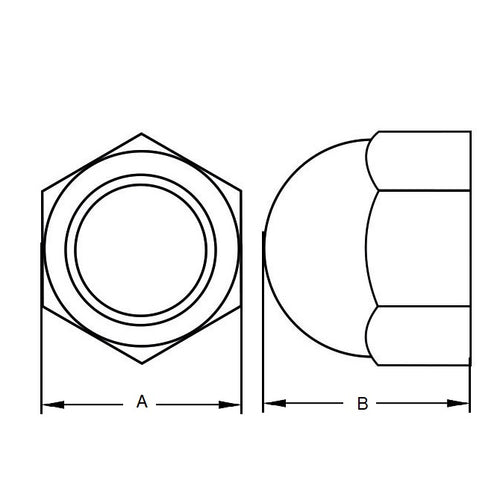

• Height (B) 8.89 mm
• Across Flats (A) 9.53
• Pitch 0.794 mm
• Threads Per Inch 32 TPI
• Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Brighton Best® 569240
• 91855A460
