THS048F-022-H-CB - Datasheet

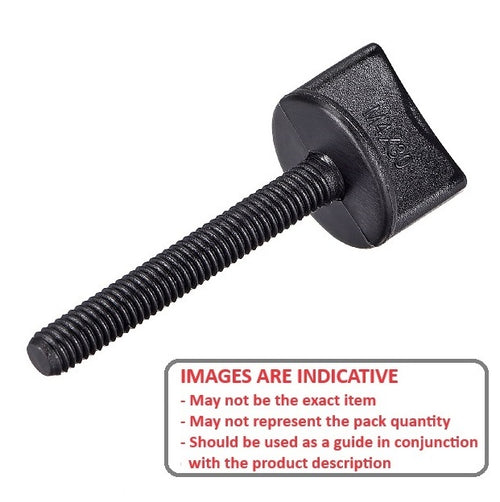

Name: 1058666 | THS048F-022-H-CB (Each) --- Thumb Screws - 10-32 UNF - 4.76mm - 22.23x42.86 mm Half Turn - Steel Screw
Rating: 5.0 (1 reviews)

MBA

Category Information

Screws - Thumb - Half Turn

Half Turn Thumb Screws. This is the main category in this series

An expanded range may be available on special order. Please enquire.

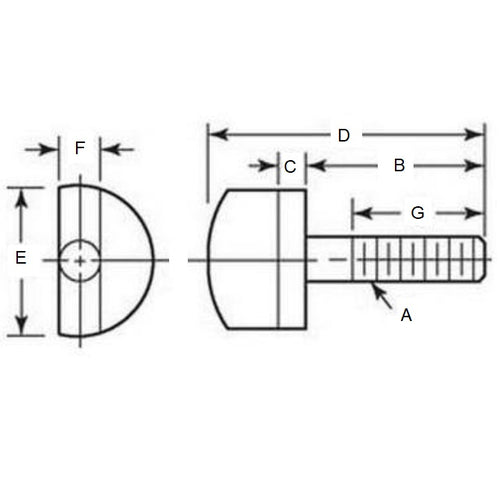

Product Data

Thread Size (A) : 10-32 UNF (4.76mm)
Thread Length (G) 22.23 mm
Overall Length (D) 42.86 mm
Head Diameter (E/F) 19.05 / 4.76 mm
Finish Black Oxide
Material Steel

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Thumb Screws and Nuts PDF Quick Guide
PDF Screws Catalogue
Nuts

Measuring Small Parts
Metalworking Resource Guide

Screws & Nuts Catalogue
Shoulder Screws Catalogue
Socket Set (Grub) Screws Catalogue
Thumb Screws & Thumb Nuts Catalogue
Thread Size Chart - Combined Imperial & Metric

Cross References

Reid Tool® HTS-700
HTS700
