Miniature Bearings Australia
BLB-01020-00500-W3 - Datasheet
Iglidur
Category Information

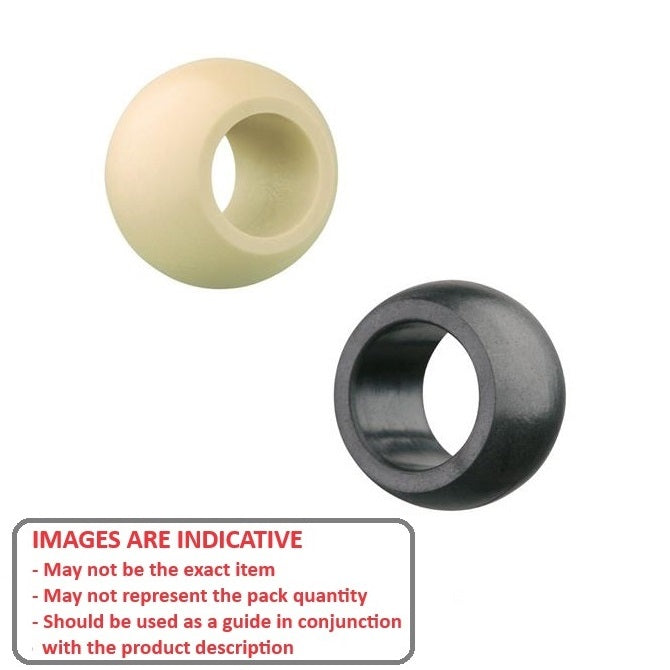

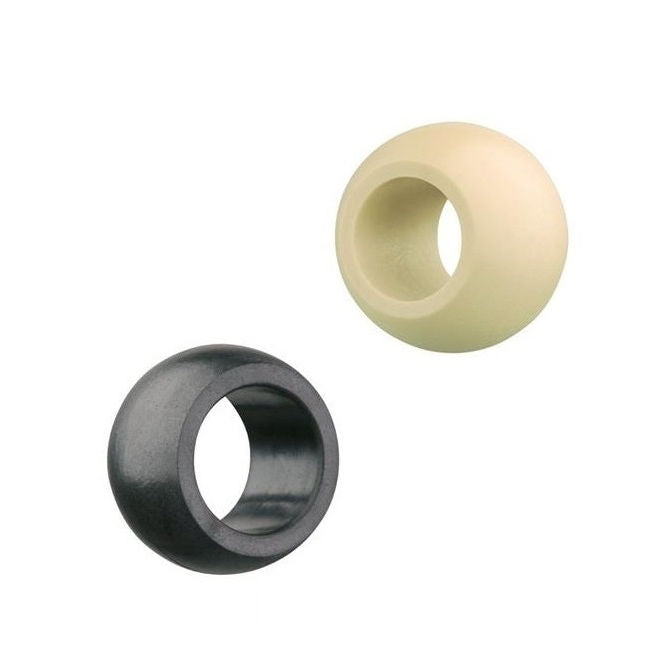

Balls - Bored - PlasticPlastic Bored Balls. Similr to the style used in plastic rod ends.
- These bored balls are similar to the style of ball often found in a rod end or a spherical plain bearing.
- Used in machinery for applications such as pivots, in industries that include food processing, medical supplies, and general parts production.
- Igildur W300. Corrosion Resistant. Maintenance Free - Self Lubricating.
- High wear resistance at medium temperatures. Low moisture absorption.
- Suitable for rotating, oscillating and linear movement. Lightweight.
Product Data

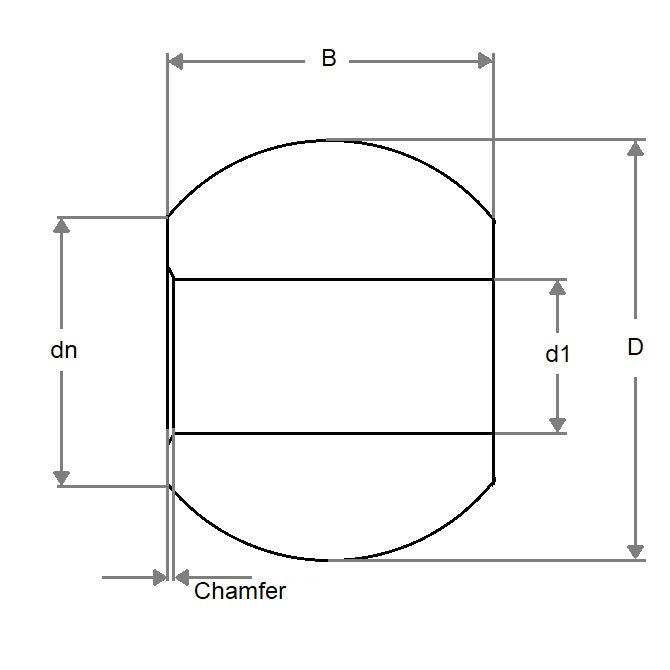

- Diameter (D) : 10.20 mm
- Inside Diameter (d1) 5.000 mm
- Width (B) 6.00 mm
- Shoulder Diameter (dn) 8.00 mm
- Chamfer 0.3X30 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Igus® WEM-05-06
- WEM0506
