NT048C-NI-S4 - Datasheet
Brighton Best
Category Information

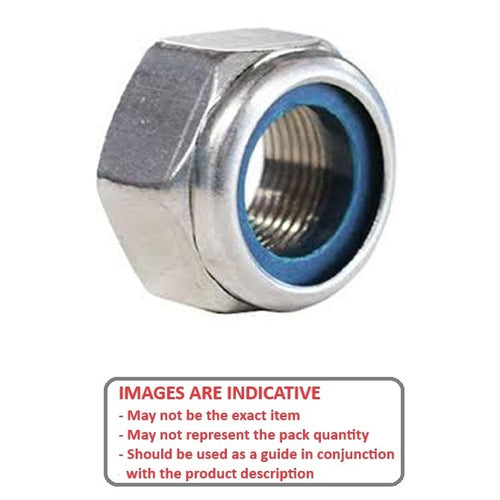

Nuts - Hexagonal - Nylon Insert - Stainless SteelStainless Steel Nylon Insert Hexagonal Nuts. Nylon Insert for Locking. NylocTM and other brands.
- An expanded range may be available on special order. Please enquire.

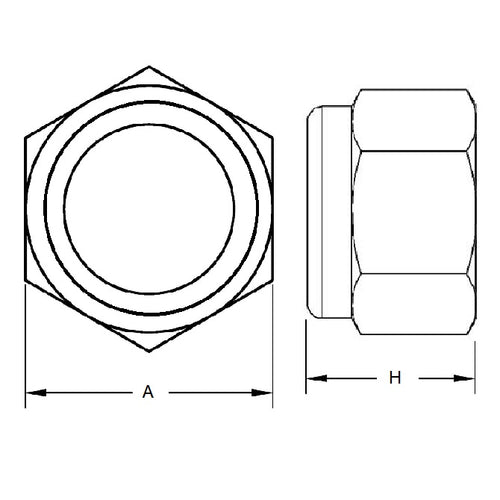

- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : 10-24 UNC (4.76mm)
- Thickness (H) 6.1 mm
- Across Flats (A/F) 9.4 mm
- 6.1
- Type Standard
- Pitch 1.058 mm
- Threads Per Inch 24 TPI
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 310015
- 91831A009
- Reid Tool® ROC-4978-011
- ROC4978011
