RP015-0180-4 - Datasheet
ENQUIRE
Category Information

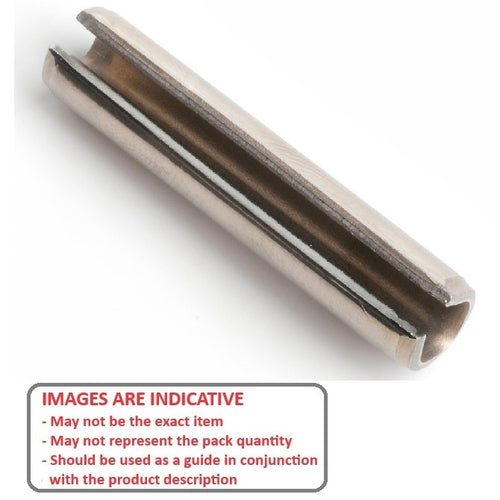

Pins - Roll - Stainless Steel - 300 Grade300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Diameter (D) : 1.50 mm
- Length (L) 18.00 mm
- Free Diameter 1.65 mm
- Thickness (S) 0.35 mm
- Chamfer Length (cL) 0.15-0.70 mm
- Chamfer Diameter (cD) 1.4 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- NoCor® SPMS-015-018-304SS
- SRP1.5-18
- SRP1518
- SPMS015018304SS
