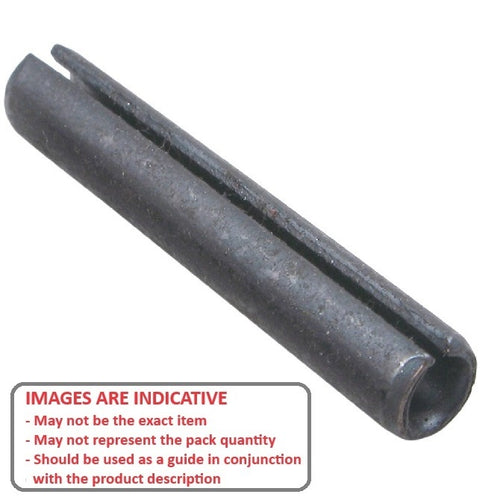

RP015-0140-C - Datasheet
Brighton Best
Category Information
Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 1.50 mm
- Length (L) 14.00 mm
- Free Diameter 1.65 mm
- Thickness (S) 0.35 mm
- Chamfer Length (cL) 0.15-0.70 mm
- Chamfer Diameter (cD) 1.4 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 802949
- NoCor® SPM-015-014
- Huyett® SPM-015-014-I
- NoCor® SPMP-015-014
- SAP1.5-14
- SAP1514
- MD1481MQB015X014
- SPM015014
- SPMP015014
