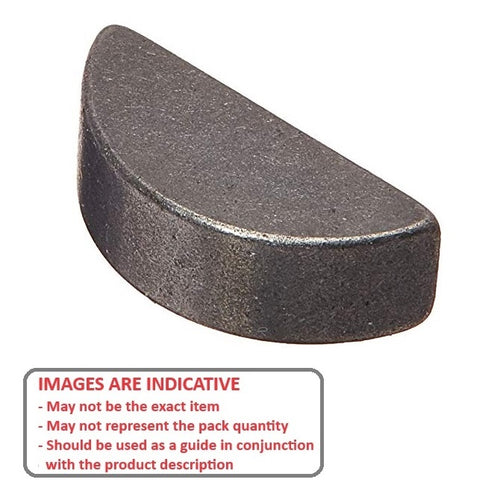

KW-016-042-093-C - Datasheet
ExaktKey
Category Information
Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data
- Thickness (S)
:
1.59
mm
+/- 0.025
(Equiv. 0.063 in.) - Approx. Height (H)
4.2
mm
+/- 0.250
(Equiv. 0.165 in.) - Approx. Length (L) 9.25 mm
- Basis Diameter (D) 9.53 mm
- Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- ANSI 203
- 98481A065
- Key Size 211
- Huyett® WKC-211
- NoCor® WKC211
- KW016095C
