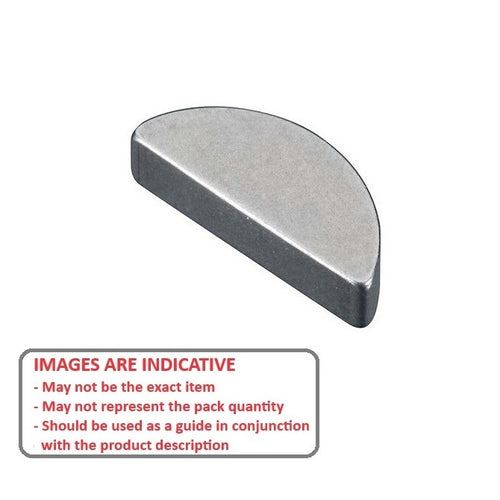

KW-016-050-122-S3 - Datasheet
ExaktKey
Category Information
Keys - Woodruff - 303 Stainless Steel303 Stainless Steel Woodruff Keys. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data
- Thickness (S)
:
1.59
mm
+/- 0.025
(Equiv. 0.063 in.) - Approx. Height (H)
5.0
mm
+/- 0.250
(Equiv. 0.197 in.) - Approx. Length (L) 12.22 mm
- Basis Diameter (D) 12.70 mm
- Material Stainless Steel 303 (Similar to A2 or 304 or 18-8)
Product Compliance and Data
Additional Resources
Cross References
- ANSI 204-SS
- NoCor® A9X490216
- Key Size 1 Stainless
- Huyett® WKS-001
- NoCor® WKS001
- KW016127S3
- A9X49-0216
