CP-015-020-13-013-H-B6-AL-G - Datasheet
MBA
Category Information

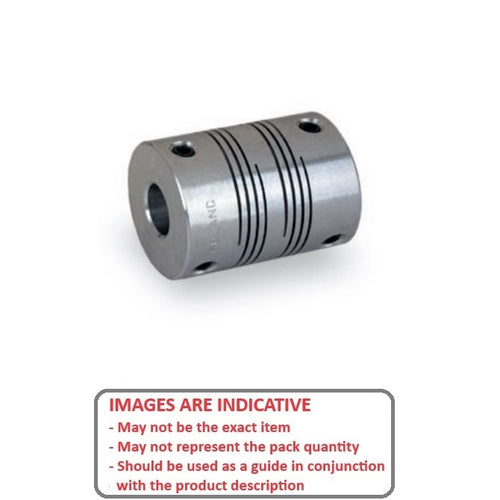

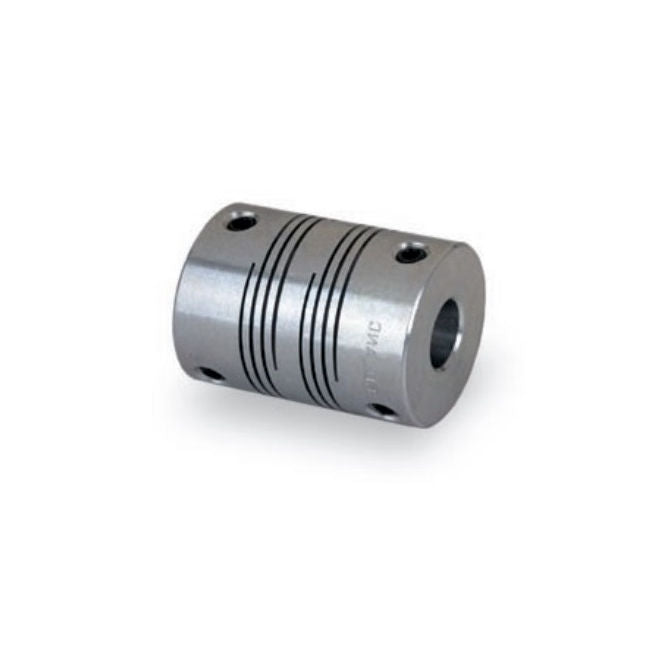

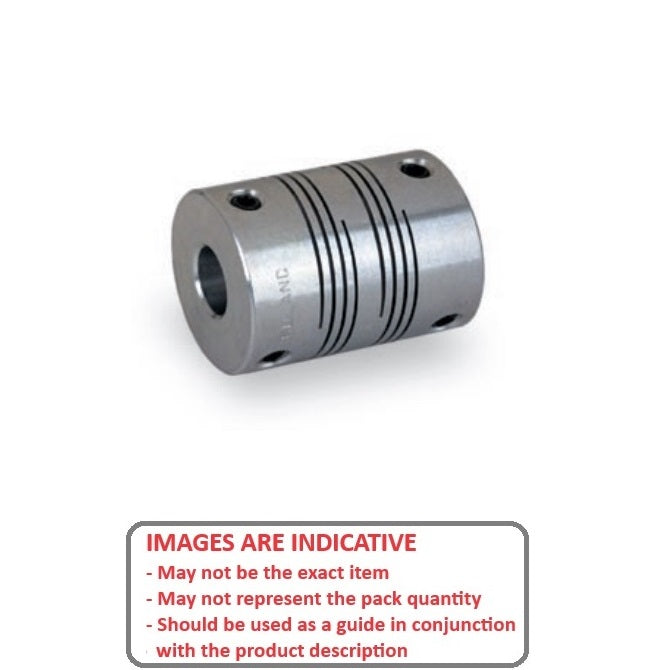

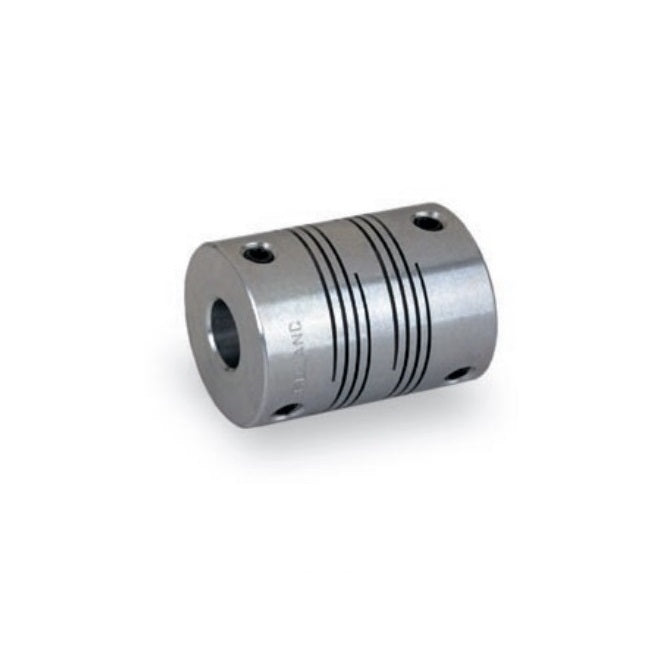

Couplings - Spiral 6 Beam - Aluminium Set Screw TypeAluminium Set Screw Type Spiral 6 Beam Couplings. Pilot Bore size not toleranced.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Finished Bore sizes to +0.03/0.00.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

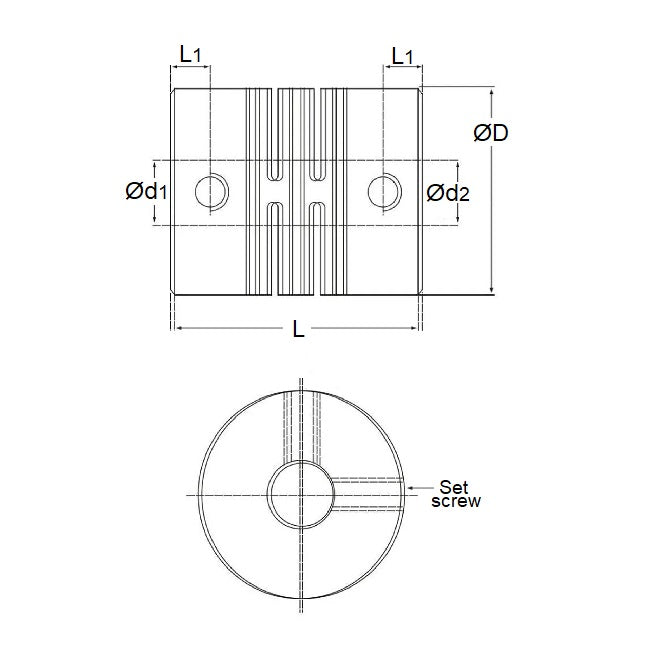

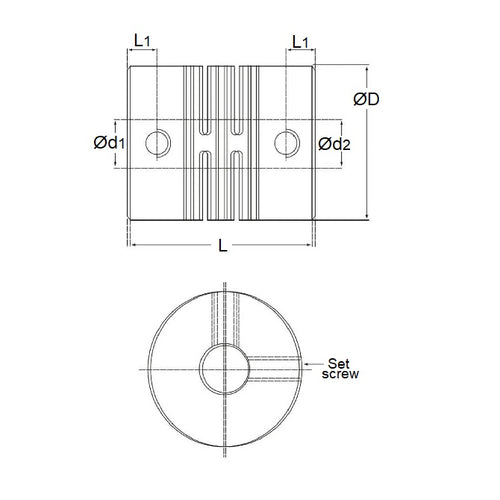

- Bore (B) : 1.500 mm
- Bore (B) Pilot Bore 2.0 mm
- OD 12.70 mm
- Max. Bore 6.35 mm
- Length 12.70 mm
- Max. Angular Offset 3 Deg
- Max Parallel Offset 0.07 mm
- Hub Type Set Screw
- Torsional Stiffness 1.5 N.m/Rad
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- BS21
