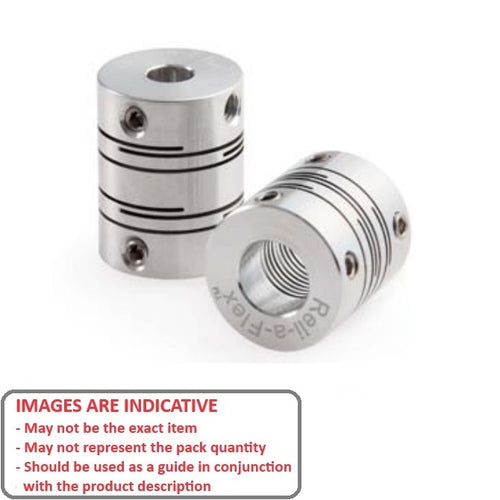

Couplings - Helical - Short Series - Set Screw Type

Set Screw Type Short Series Helical Couplings. Zero backlash, one piece construction

  • An expanded range may be available on special order. Please enquire.
  • Maximises torsional stiffness without inducing high bearing loads
  • Over 50,000,000 test cycles at rated load and 80 percent offset without failure
  • Maintenance Free. Recommended temperature range minus 80 oC to plus 80 Deg C

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Bore (B1) : 1.450 mm + 0.010 / - 0.000
    (Equiv. 0.057 in.)
  • Bore (B2) Pilot Bore 1.45 mm + 0.010 / - 0.000
  • OD (D) / Clearance Dia (H) 8.0 mm +/- 0.13
    (Equiv. 0.315 in.)
  • Length (L) 11.7 mm +/- 0.13
  • Working Torque 0.30 N.m
  • Maximum Speed 40000 RPM
  • Hub Length (E) 3.20 mm
  • Torsional Stiffness 8.7 Nm/rad
  • Parallel Misalignment 0.05 mm
  • Angular Misalignment 2.0 Deg
  • Axial Misalignment +/-0.10 mm
  • Max Inertia 0.11 g/cm Sq
  • Material Aluminium 7075-T6
Country of Origin: GB

Product Compliance and Data

Additional Resources

    Cross References

    • Reliance® RCSA8-PB-PB
    • RCSA8PBPB
    View full details

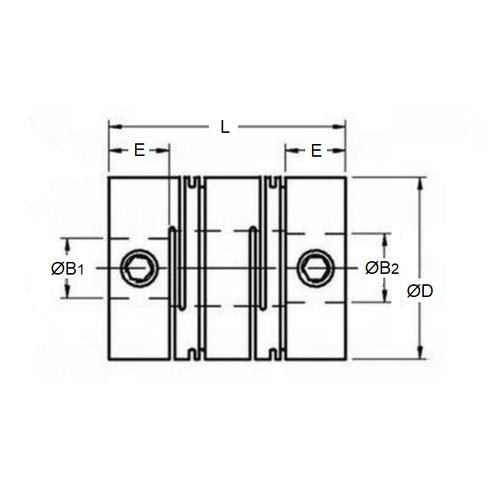

    CP-015-015-08-012-H-RFS-ALDiagramCP-015-015-08-012-H-RFS-ALImage
