SC064C-038-C-SK-C-BT - Datasheet
MBA
Category Information

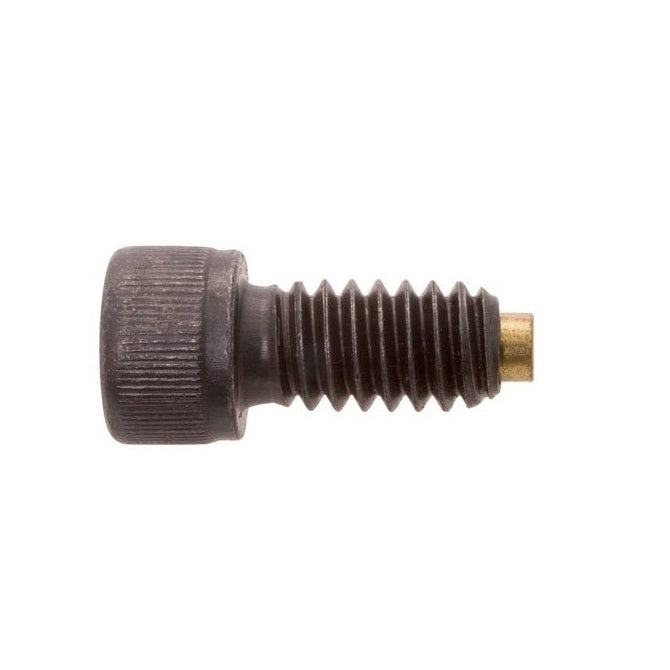

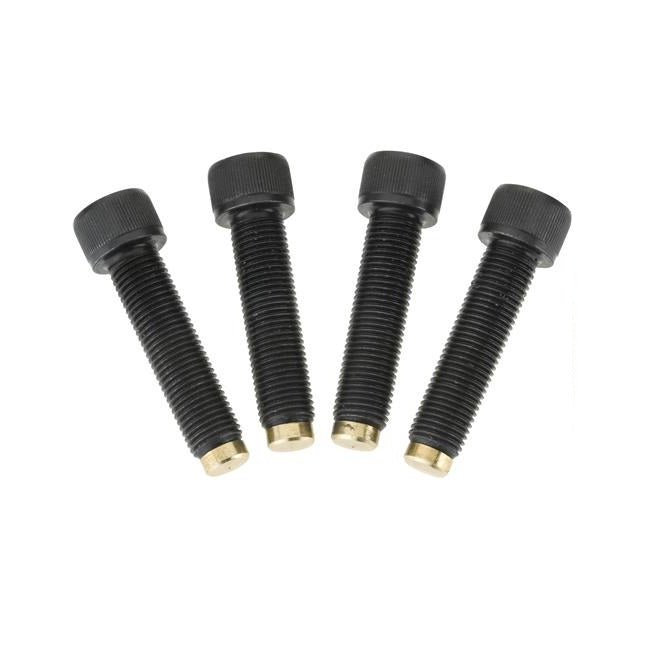

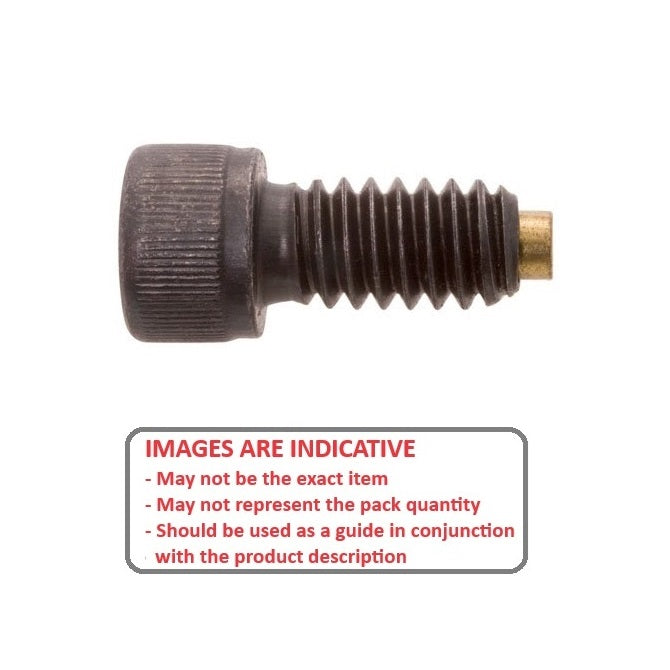

Screws - Cap Tipped - Socket - Alloy Steel - Brass TipBrass Tip Alloy Steel Socket Cap Tipped Screws. Brass tipped socket cap screws in alloy steel
- Socketed cap head screws with a soft tip end.
Product Data

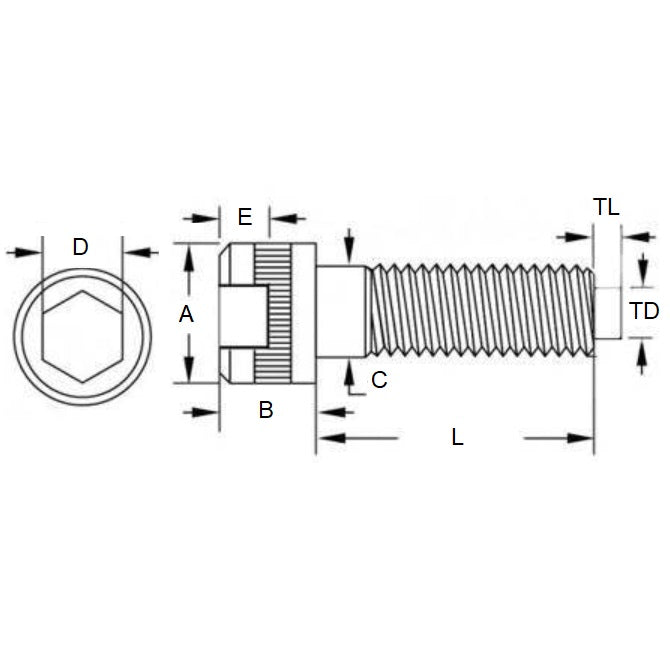

- Thread Size (C) : 1/4-20 UNC (6.35mm)
- Thread Length (L) 38.1 mm
- Tip Diameter 3.20 mm
- Tip Length 1.57 mm
- Head Length (B Max.) 6.35 mm
- Head Diameter (A Max.) 9.53 mm
- 6.18 - 6.35
- Material Steel Alloy
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90299A545
- Reid Tool® TNT-130
- TNT130
