KF064C-032-CSL - Datasheet

MBA

Category Information

Knobs - Cross - Female - Standard

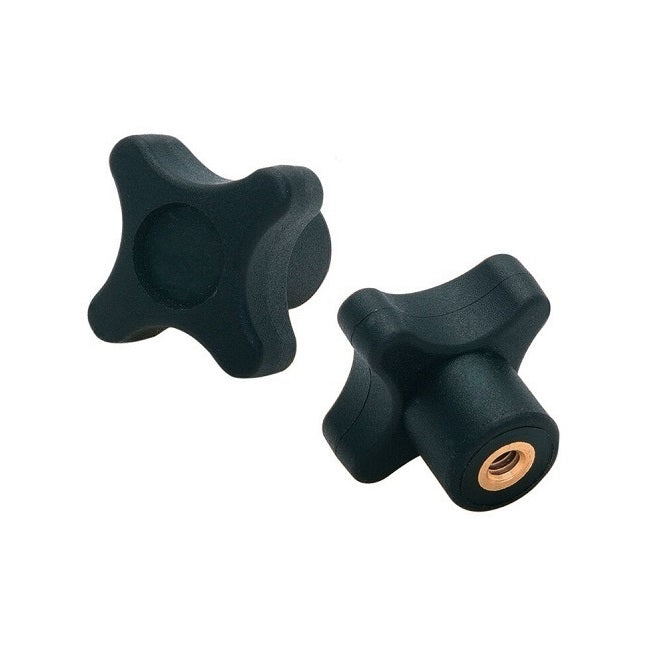

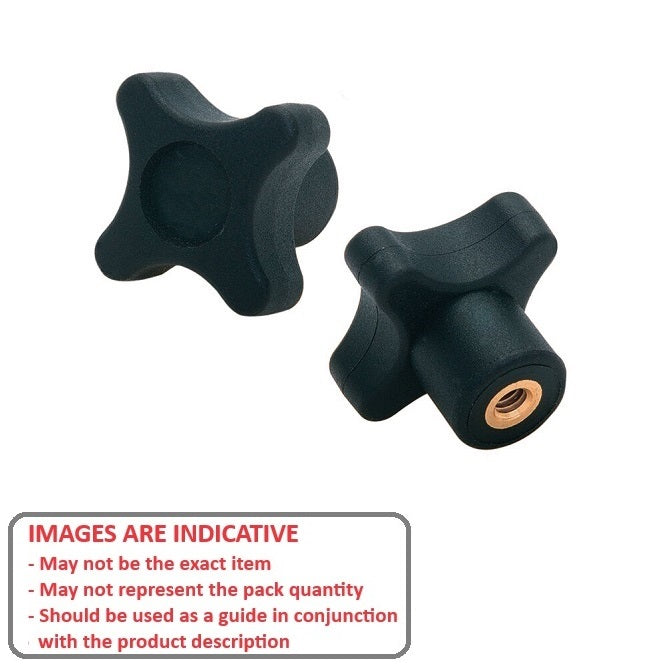

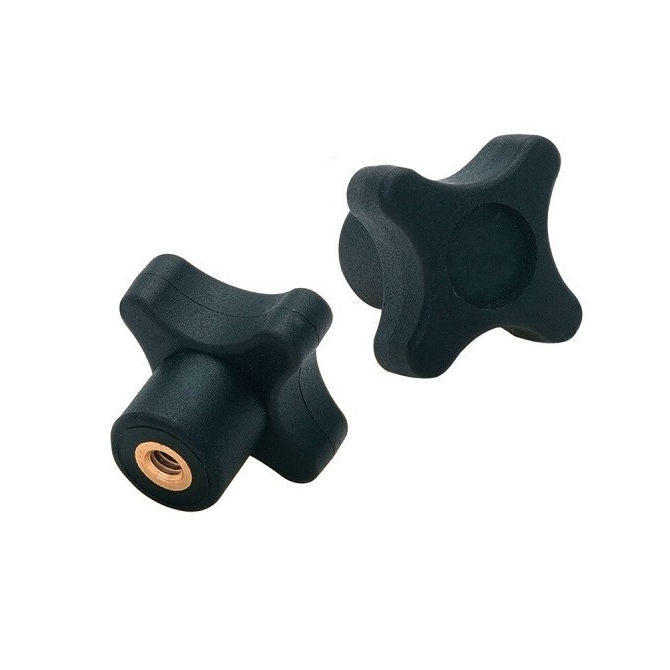

Standard Female Cross Knobs. Black Plastic Knob with a Brass insert.

  • 4 Prong cross knobs to go onto threads.

Product Data

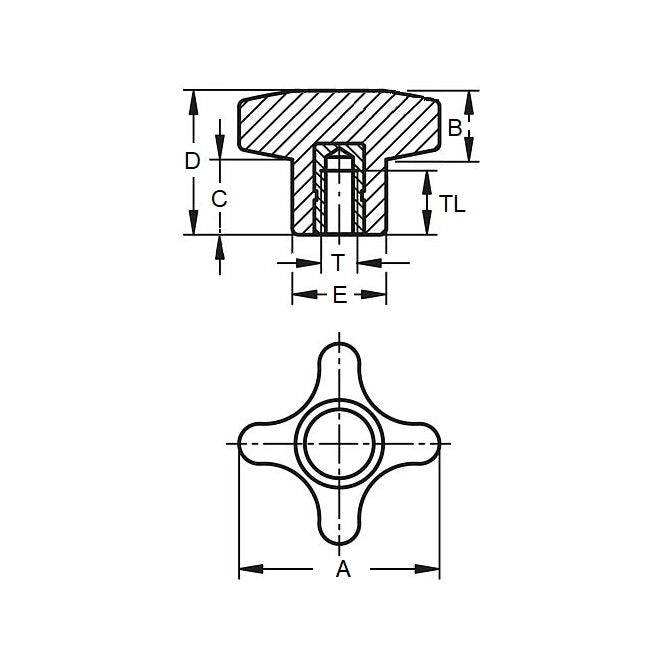

  • Thread Size : 1/4-20 UNC (6.35mm)
  • Head Diameter (A) 32.00 mm
  • Thread Length 9.5 mm
  • Colour Black
  • Hub Diameter (C) 14.99 mm
  • Hub Length (D) 11.94 mm
  • Knob Height (B) 23.11
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® JCL-102
  • JCL102
