CHE-109RS - Datasheet
MBA
Category Information

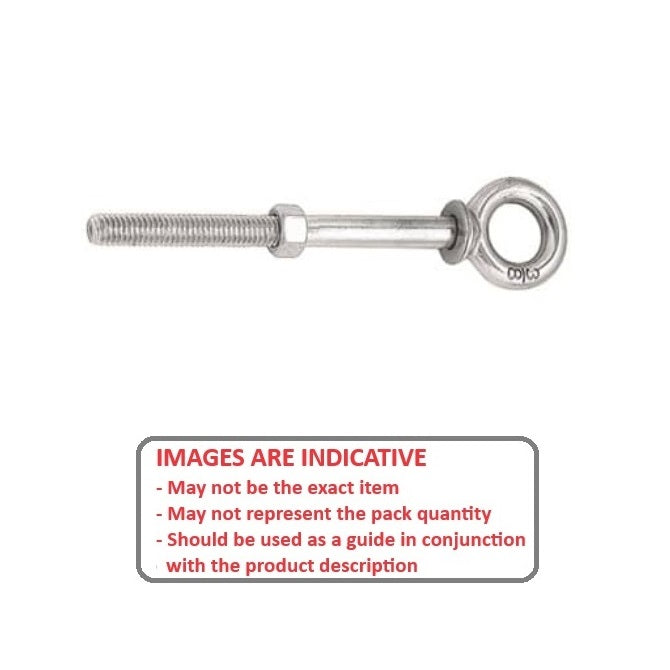

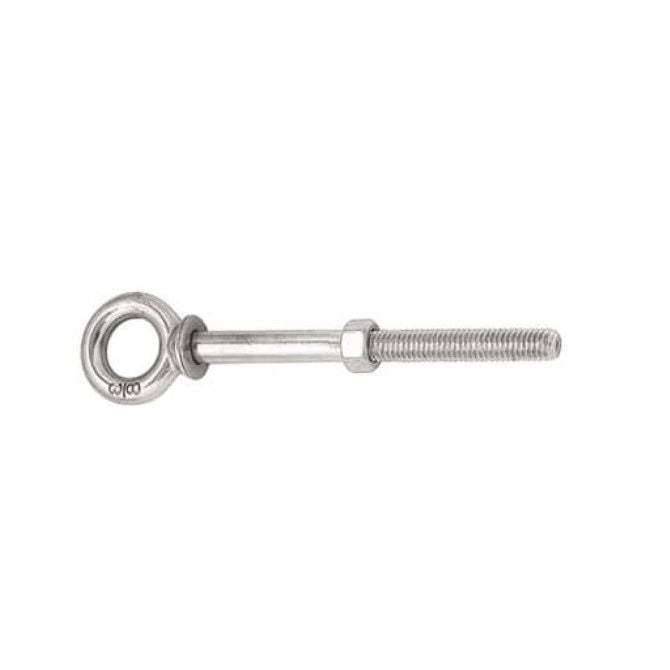

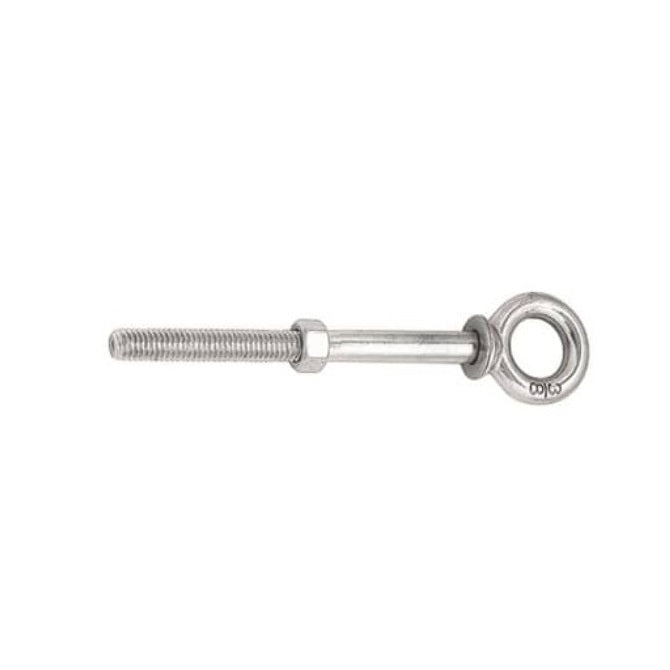

Eye Bolts - Partial Threaded Shank - Shouldered - Stainless SteelStainless Steel Shouldered Partial Threaded Shank Eye Bolts. 316 Stainless Steel
- Fastener with a loop or eye at one end, and a partial threaded shank on the other.
- Used to attach ropes or cables to secure or lift objects by screwing the threaded end into a structure, with the loop providing an anchor point.
- Regular eye bolts for vertical lifting and shoulder eye bolts that can handle angled loads.
- Any deviations such as angular lifts, shock loads, modifications of the basic forging etc will result in drastically reduced maximum loads.

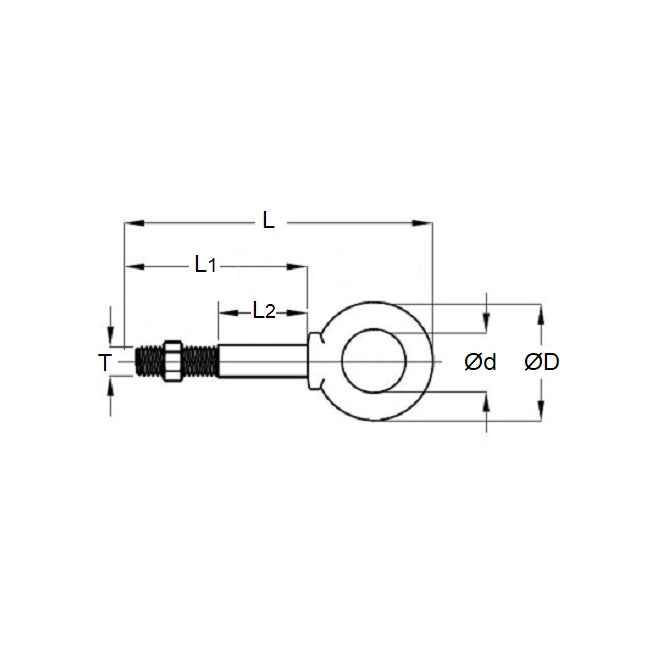

Product Data
- Thread Size : 1/4-20 UNC (6.35mm)
- Shank Length
50.800
mm
(Equiv. 2 in.) - Eye Inside Diameter
12.700
mm
(Equiv. 0.5 in.) - Rated Capacity 227 Kg
Product Compliance and Data
Additional Resources
Cross References
- 3032T41
