MCOD-0001-013 - Datasheet
MBA
Category Information

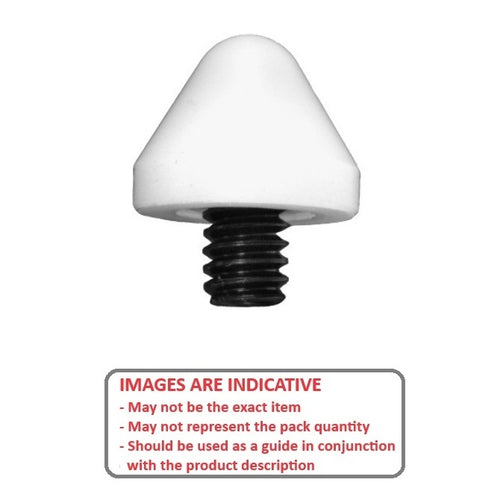

Mounts - ConeCone Mounts. This is the main category in this series
- Delrin offers non-marring attribute.
- For nesting cylindrical or curved parts. Also provides resting point without limiting access to part.

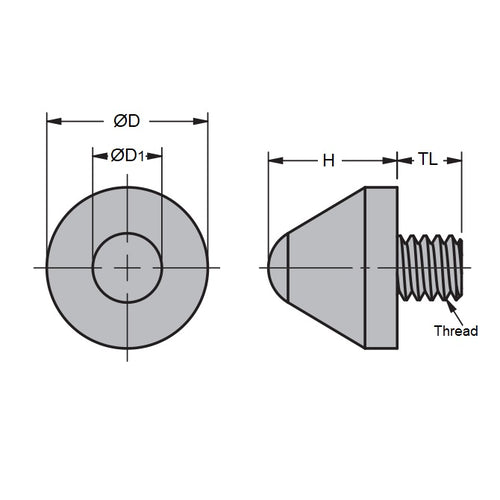

Product Data
- Thread : 1/4-12 UNC 2A
- Cone Height 12.70 mm
- Thread Length 6.35 mm
- Tip Radius 3.96 mm
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® CMM-14075
- CMM14075
