ACE10RS - Datasheet

ACE

Category Information

Shock Absorbers - Accessories - Mounting Blocks

Mounting Blocks Accessories Shock Absorbers. This is the main category in this series

    Product Data

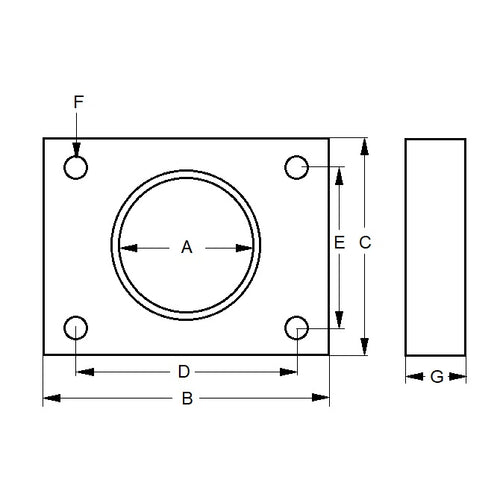

    • Suitable Thread (A) : 1.3/4-12
    • Length (B) 76.20 mm
    • Width (C) 57.15 mm
    • Height (G) 12.70 mm
    • Bolt Centres (D/E) 60.45 / 41.15 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • Reid Tool® ACE-10
      • ACE10
      View full details

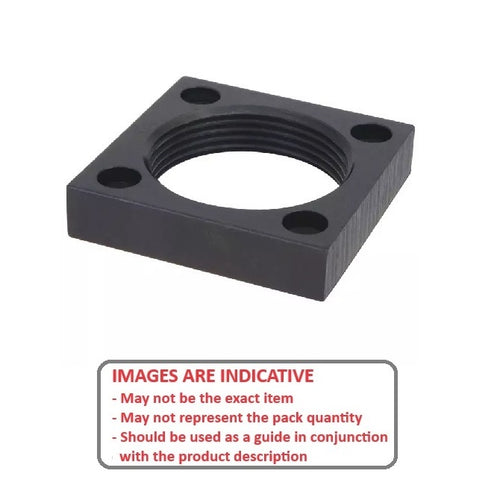

      ACE10RSDiagramACE10RSImage
