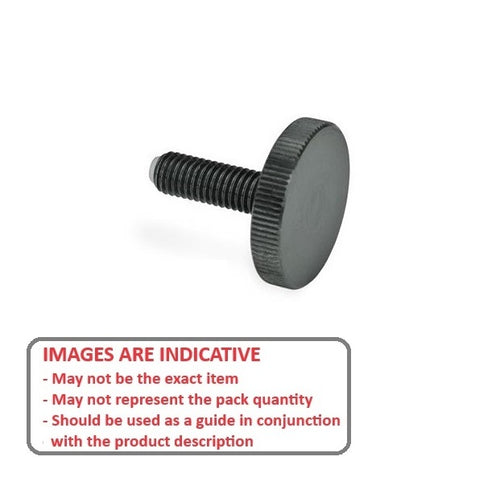

THS127C-076-K-CS-FT - Datasheet

MBA

Product Data

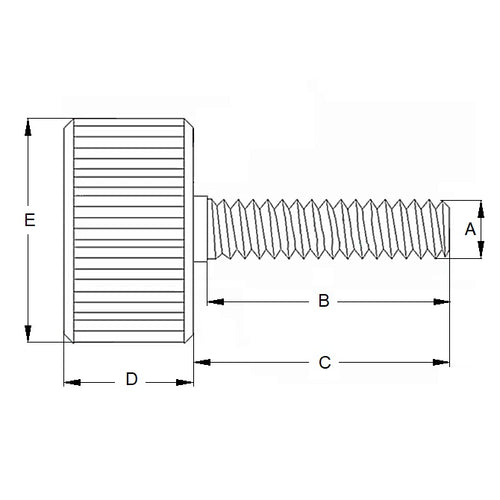

• Thread Size (A) : 1/2-13 UNC (12.7mm)
• Thread Length (B) 76.20 mm
• Head Diameter (E) 25.40 mm
• Head Height (D) 9.53 mm
• Material Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• PDF Screws Catalogue

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Reid Tool® SKHS-5
• SKHS5
