THS127C-076-K-CB-FT - Datasheet
MBA
Category Information

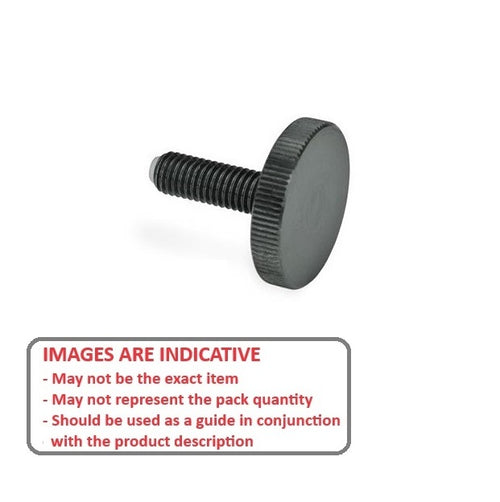

Screws - Thumb - Flat TipFlat Tip Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.

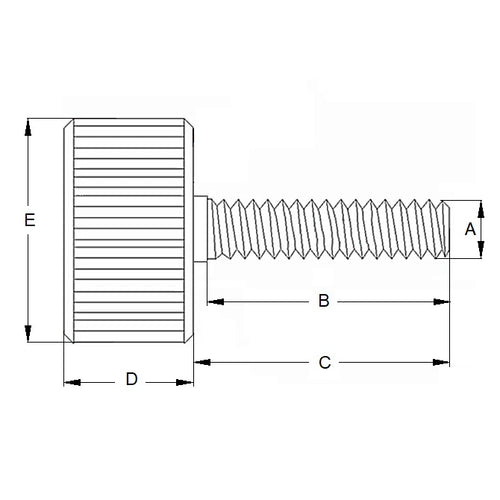

Product Data
- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Thread Length (B) 76.20 mm
- Head Diameter (E) 25.40 mm
- Head Height (D) 9.53 mm
- Finish Black Oxide
- Material Steel 12L14
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90200A724
- Reid Tool® KHS-5
- KHS5
