KF127C-050-CS - Datasheet

MBA

Category Information

Knobs - Cross - Female - Standard

Standard Female Cross Knobs. Black Plastic Knob with a Brass insert.

  • 4 Prong cross knobs to go onto threads.

Product Data

  • Thread Size : 1/2-13 UNC (12.7mm)
  • Head Diameter (A) 50.04 mm
  • Thread Length 19.1 mm
  • Colour Black
  • Hub Diameter (C) 20.07 mm
  • Hub Length (D) 14.48 mm
  • Knob Height (B) 28.45
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® JCL-111
  • JCL111
View full details

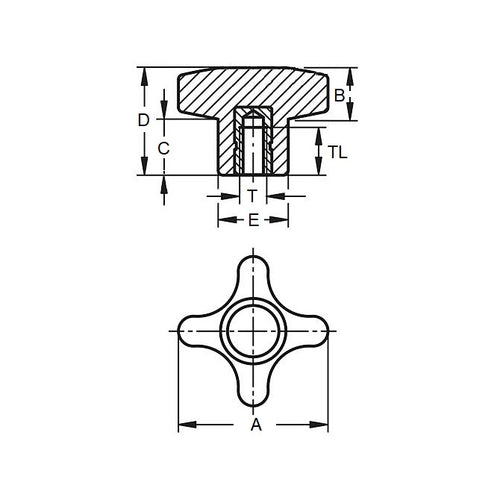

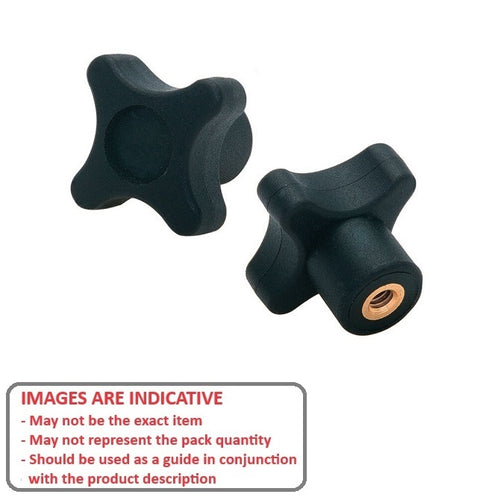

KF127C-050-CSDiagramKF127C-050-CSImage
